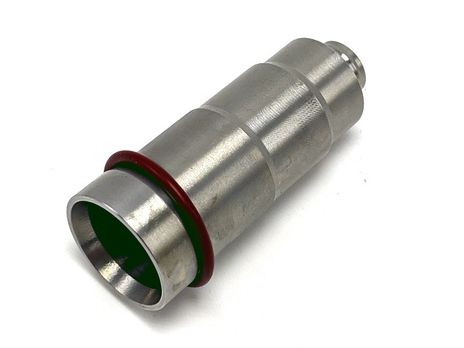

Paccar MX13 SS injector sleeve w O ring.

PACCAR MX-13 Stainless Steel Injector Sleeve w/ O-Ring - Essential for Engine Sealing

This Stainless Steel Injector Sleeve, complete with an essential O-ring, is specifically designed for PACCAR MX-13 Series engines. Its robust stainless steel construction marks a key distinction from copper sleeves used in other engines, ensuring superior durability and performance. Crucial for proper injector sealing, this Made-in-USA consumable requires careful lubrication of the O-ring with clean engine oil and application of a high-heat sealant (like Permatex 64000) to its lower nose during installation. It is then precisely driven into the casting using a dedicated sleeve drive-in tool for a secure, leak-free fit.

PACCAR MX-13 Stainless Steel Injector Sleeve w/ O-Ring - High-Performance Sealing Solution

The PACCAR MX-13 Stainless Steel Injector Sleeve with O-Ring is a precision-engineered component vital for maintaining the integrity and sealing performance of fuel injectors in PACCAR MX-13 Series engines. Manufactured with high standards, this sleeve is designed for durability and reliable service.

Key Characteristics and Material Advantage:

• Injector Sleeve Type: This is a crucial component that houses the fuel injector, ensuring its proper seating and sealing within the cylinder head.
• Stainless Steel Construction: Unlike copper sleeves found in other Cummins applications, this sleeve is made from robust stainless steel. This material choice provides enhanced durability, corrosion resistance, and heat tolerance, crucial for the demanding operating environment of the PACCAR MX-13 engine.
• Integrated O-Ring: Each sleeve comes complete with a precisely sized O-ring, which is critical for creating a reliable seal against combustion gases and coolant.

Precise Installation Guidelines for Optimal Sealing:

Proper installation of this stainless steel injector sleeve is paramount for preventing leaks and ensuring long-term engine reliability. Follow these key steps:

1. O-Ring Lubrication: Always use a new O-ring and lubricate it thoroughly with clean engine oil before installation to ensure smooth seating and proper sealing.
2. Sealant Application: Apply a small, even amount of Permatex (64000) high heat sealant (sleeve retainer) or an equivalent product to the lower nose section of the injector sleeve. Ensure complete coverage around the nose to create an effective thermal and pressure seal once installed.
3. Driving into Casting: Carefully position the prepared sleeve into the casting. Use a specialized sleeve drive-in tool (Part Number 423-6332-10) and a hammer to gently and evenly drive the sleeve to the bottom of the casting. Continue until the sound of the driving indicates the sleeve is fully seated against its stop.

Availability and Quality Assurance:

This stainless steel injector sleeve is listed as an “ADDITIONAL CONSUMABLE ITEM AVAILABLE” within the comprehensive PACCAR MX-13 Series Kit, ensuring easy access for replacement needs. Furthermore, like many other high-quality Irontite tools and components, this sleeve is “Made in USA”, reflecting a commitment to superior manufacturing standards.

By utilizing the PACCAR MX-13 Stainless Steel Injector Sleeve with O-Ring, you ensure the precise fit, reliable sealing, and long-term performance essential for your PACCAR MX-13 Series engines.
