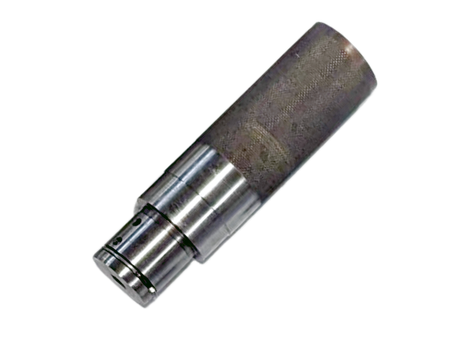

Volvo D13/Mack MP8 Tip Expander Driver

The Irontite Volvo D13 / Mack MP8 Tip Expander Driver is a precision tool used to drive the tip expander through the nose of the injector sleeve after installation. Working from the combustion face of the cylinder head, this driver expands the sleeve tip in Volvo D13 and Mack MP8 injector bores to lock the sleeve in place and improve sealing against combustion and coolant leaks.

Volvo D13 / Mack MP8 Tip Expander Driver

The Irontite Volvo D13 / Mack MP8 Tip Expander Driver is a purpose‑built driver tool designed to work with the matching Tip Expander (PN 445‑6681‑21) when installing injector sleeves in Volvo D13 and Mack MP8 cylinder heads.

After a new injector sleeve is pressed into the bore and seated at the bottom of the casting, the tip expander and driver are used from the combustion‑chamber side of the head to expand the lower nose of the sleeve. This expansion helps mechanically lock the sleeve into the casting and provides a tight, leak‑free seal.

Engine‑Specific Application

• Designed for Volvo D13 cylinder heads
• Designed for Mack MP8 series cylinder heads
• Matches the injector sleeve configuration used with Irontite PN 419‑6681‑05 (Volvo D13 / MP8 Stainless Steel Injector Sleeve w/O‑Ring)

Using a Volvo/Mack‑specific tip expander setup ensures proper alignment and expansion at the exact location required by these heads.

How the Tip Expander Driver Is Used

As detailed in Irontite’s Injector Sleeve Removal & Installation Manual:

1. Assemble the tools

   • Attach the Tip Expander (445‑6681‑21) to the Tip Expander Driver (445‑6681‑25).

2. Apply lubricant

   • Coat the tip expander with Permatex Anti‑Seize Lubricant (468‑9771‑34) to reduce friction and prevent galling as it passes through the sleeve nose.

3. Position the tool

   • From the injector‑bore side, position the assembled tip expander and driver at the nose of the installed injector sleeve.

4. Drive the expander through

   • Using a hammer, drive the tip expander through the nose of the sleeve. The expander enlarges the lower section of the sleeve, pressing it firmly against the machined casting seat.

5. Remove the tools

   • From the combustion face of the cylinder head, remove the tip expander.
   • Withdraw the tip expander driver from the sleeve.

This controlled expansion step is critical to achieving long‑term sealing reliability after the sleeve has been bonded with Permatex 64000 High Heat Sleeve Retainer.

Why Proper Tip Expansion Matters

Correct use of the tip expander and driver helps:

• Lock the sleeve in place mechanically in addition to chemical retention.
• Improve sealing at the combustion‑chamber end of the sleeve.
• Reduce the risk of leaks between the sleeve, casting, coolant, and combustion gases.
• Prevent sleeve movement under thermal cycling and engine vibration.

Using the dedicated expander driver instead of an improvised punch or drift helps maintain alignment through the sleeve bore, protecting both the sleeve and the casting.

Part of the Volvo D13 / Mack MP8 Professional Kit

The Tip Expander Driver 445‑6681‑25 is included in the Volvo D13 / Mack MP8 Injector Sleeve Professional Kit (PN 451‑6681‑00) alongside:

• Tip Expander (445‑6681‑21)
• Sleeve Removal Tool (445‑6682‑10)
• End Facing Counter Bore Cutter (445‑6683‑30) with Pilot & Guide Bushing
• Driving Arbor
• Upper Bore and Tip Brushes
• EA Lube cutting fluid
• Permatex 64000 Sleeve Retainer & Permatex Anti‑Seize
• Toolbox and detailed instructions

Shops can purchase 445‑6681‑25 as a replacement driver or as a component when building out a dedicated Volvo D13 / MP8 injector sleeve service setup.

Ideal Users

• Diesel engine rebuilders
• Heavy‑duty truck and engine machine shops
• Fleet maintenance departments servicing Volvo D13 / Mack MP8 engines

Whenever new injector sleeves are installed, the tip expander driver is an essential tool to complete the installation process correctly.

Key Features

• Application‑specific tip expander driver for Volvo D13 / Mack MP8 injector sleeves
• Works with Tip Expander PN 445‑6681‑21
• Used from the combustion face to expand the sleeve nose
• Helps ensure positive sleeve retention and a leak‑free seal
• Professional‑grade construction for repeated shop use
• Included in Irontite Volvo D13 / MP8 Injector Sleeve Professional Kit PN 451‑6681‑00
