Tap - 1-1/8-18 GH3 Cummins X12

Tap (1-⅛-18 GH3) for Cummins X12 - Essential for Injector Sleeve Removal

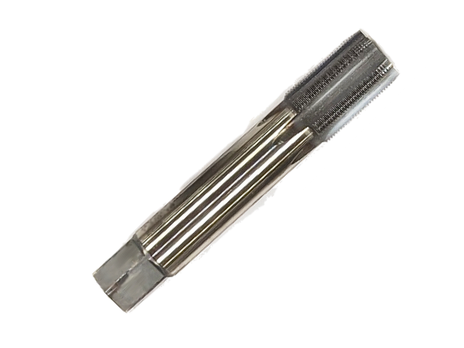

This Tap (1-⅛-18 GH3), an extended and specialized tool by Irontite Products Inc., is meticulously designed to thread the upper end of worn injector sleeves in Cummins X12 Series engines. Essential for the removal process within the “REMOVAL and INSTALLATION” procedure, it creates a secure grip point for subsequent extraction tools. Used in conjunction with a tap guide bushing (416-6156-32) and requiring lubrication with “EA” Lube (468-9910-08), this Made-in-USA tap is a vital component of The Complete Cummins X12 Series Kit (450-6158-00).

Tap (1-⅛-18 GH3) for Cummins X12 Series - Precision Threading for Injector Sleeve Removal

The Tap (specified as 1-⅛-18 GH3), an extended and specialized tool by Irontite Products Inc., is a critical component engineered for the precise and efficient removal of injector sleeves from Cummins X12 Series engines. This high-quality tap plays an indispensable role in the overall “REMOVAL and INSTALLATION” procedure for these demanding engines.

Primary Function: Precision Threading for Secure Extraction:

The core function of this Tap is to accurately thread the upper end of the worn injector sleeve. This vital tapping process creates precise internal threads within the old sleeve, which then allows the subsequent removal tool (not included with this tap, but part of the complete system) to establish a tight, secure grip for safe and efficient extraction. This method minimizes the risk of damage to the cylinder head or surrounding components during sleeve removal.

Method of Use and Essential Accessories:

For optimal performance and to ensure precise threading, this tap is used with specific accompanying tools and procedures:

• Tap Guide Bushing: It must be used in conjunction with a tap guide bushing (416-6156-32). This bushing ensures proper alignment and prevents tap run-out, leading to clean, accurate threads.
• Lubrication is CRITICAL: During the tapping process, the tap must be adequately lubricated with “EA” Lube (468-9910-08). Proper lubrication reduces friction, prevents tap wear, and facilitates smooth thread cutting.
• Tapping Depth: For effective removal, the injector sleeve should be tapped to a precise depth of approximately ⅜” to ½” deep.
• Preventing Rotation: To ensure the sleeve remains stationary and does not turn while it is being tapped, an injector tube clamp assembly (416-6158-12) should be installed and utilized during this step of the removal process.

Integral to the Complete X12 Series Kit:

This Tap is an essential included component in The Complete Cummins X12 Series Kit (450-6158-00). Its inclusion in this comprehensive kit underscores its vital role in providing a full, professional solution for injector sleeve service on Cummins X12 engines.

By integrating this specialized Tap into your toolkit, you ensure precise, secure, and efficient removal of injector sleeves from Cummins X12 Series engines, contributing to high-quality engine repair and maintenance.
