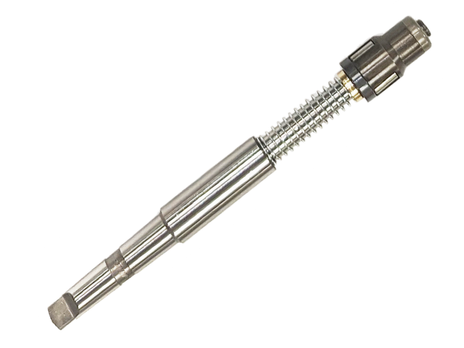

Roll-In Tool Cummins X12

The Roll-In Tool is a key component of the Complete CUMMINS X12 Series Kit (450-6158-00). Used in a machining center with quality motor oil lubrication, it expands the upper end of newly installed injector sleeves in Cummins X12 engines to ensure a secure fit and seal.

The Roll-In Tool Cummins X12 is a tool specifically engineered for the precise installation of injector sleeves in Cummins X12 series engines. This tool is included as part number 9 in the Complete CUMMINS X12 Series Kit with Toolbox (450-6158-00), highlighting its essential role in servicing these engines.

According to the Sleeve Installation instructions for the Cummins X12 Stainless Steel Injector Sleeve Removal & Installation Kit, the roll-in tool is used in a Machining Center (Seat & Guide Machine) to effectively roll in the upper end of a newly installed injector sleeve. This process is crucial for expanding the sleeve to the exact dimensions required for a proper and reliable seal within the cylinder head.

Operating Procedure:

1. Carefully insert the Roll-In Tool [416-6158-53] into the newly installed injector sleeve.
2. Operate the machining center in a clockwise direction. This rotation allows the roll-in tool to feed itself downwards into the sleeve.
3. As the tool progresses, its design applies outward pressure, precisely expanding the upper portion of the sleeve to the necessary diameter for a tight fit.
4. Once the roll-in process is complete, reverse the direction of the machining center to safely remove the tool from the expanded sleeve.

Lubrication Requirement: Maintaining proper lubrication is paramount for the smooth and effective operation of the roll-in tool. The instructions clearly state that the tool must be kept lubricated with a “Quality Motor Oil” during use and explicitly advises against using “EA” Tap & Lube for this purpose.

In summary, the [416-6158-53] Roll-In Tool Cummins X12 is a vital tool for ensuring the correct and secure installation of injector sleeves in Cummins X12 engines. Proper operation in a machining center with quality motor oil lubrication is essential for achieving a reliable seal.
