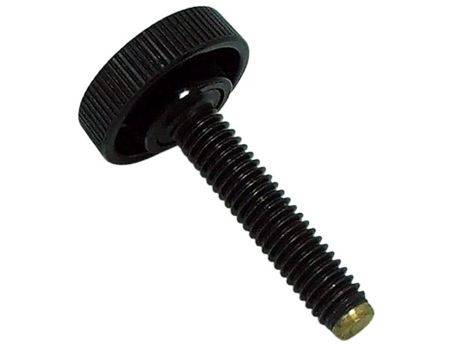

Clamp Screw Assembly 5/16"-18

Kwik-Way Clamp Screw Assembly - 5/16”-18 for SVS II Deluxe V-Block Precision

The Clamp Screw Assembly, featuring a 5/16”-18 thread, is a vital component of the Base Assembly for the Kwik-Way SVS II Deluxe Valve Refacer. This assembly is directly involved with the V-Block Assembly (012-0160-00). Its function is to secure elements related to the V-Block’s operation, which provides a precise rest for the valve face, ensuring consistent valve stem placement during grinding. This capability adds a crucial layer of accuracy, particularly essential for engines with “Non-Adjustable” valvetrains where exact valve stem length is critical.

Kwik-Way Clamp Screw Assembly (5/16”-18) - Enhancing Precision in SVS II Deluxe Valve Refacers

The Clamp Screw Assembly is a precision-engineered component designed for the Kwik-Way SVS II Deluxe Valve Refacer. As an integral part of the machine’s Base Assembly, this 5/16”-18 threaded assembly plays a key role in ensuring the accuracy and consistency of valve stem grinding operations.

Involvement with the V-Block Assembly:

This Clamp Screw Assembly (5/16”-18) is directly involved with the functionality of the V-Block Assembly (Part Number 012-0160-00). As its name suggests, this assembly is designed to provide the necessary tightening and securement for components related to the V-Block’s operation. This securement is crucial for maintaining the stability required for precise valve stem positioning.

Function of the V-Block System - Core of Grinding Accuracy:

The V-Block Assembly itself is engineered to provide a consistent rest for the valve face, ensuring that the valve stem for each valve is placed in the exact same, repeatable location. This foundational consistency adds a crucial layer of accuracy to the overall process of grinding engine valve stems. The precise and repeatable positioning facilitated by the V-Block system, supported by components like this clamp screw assembly, is particularly critical for engines equipped with a “Non-Adjustable” valvetrain, where it is imperative for all valve stems to be identical and precisely consistent in length to ensure correct engine function.

By ensuring the stable and repeatable positioning of valve stems, the Clamp Screw Assembly directly contributes to the superior accuracy and reliability achieved by the Kwik-Way SVS II Deluxe Valve Refacer in critical engine rebuilding processes.

(note: Some manuals may show this as part number 012-1039-05 Clamp Screw which is an incorrect part number. This is the correct number for that part.)
