Air Valve Assembly SVSIID

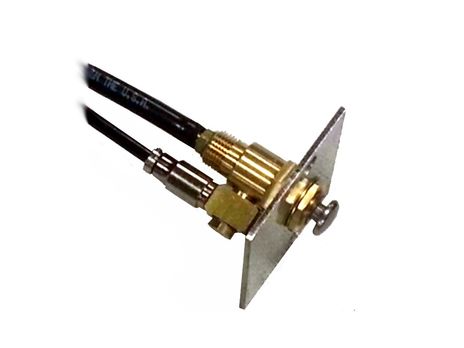

Air Valve Switch Assembly for Kwik-Way SVS II Deluxe Valve Refacer - Pre-Assembled & Leak-Tested

This Air Valve Switch Assembly is a crucial, fully pre-assembled, and thoroughly leak-tested component for the air plumbing system of your Kwik-Way SVS II Deluxe Valve Refacer. It directly controls the machine’s signature air-operated, self-aligning six-ball chuck, enabling rapid and effortless valve clamping across a wide range of sizes without the need for manual collet changes. Designed for quick and easy installation, this comprehensive assembly ensures reliable and efficient air-activated chuck operation right out of the box.

Please note: This assembly is a primary control component and is not replaced by the optional air-operated foot pedal switch (012-0400-00), which serves as an add-on for hands-free operation.

Air Valve Switch Assembly for Kwik-Way SVS II Deluxe Valve Refacer - Complete, Pre-Assembled for Precision Control

The Air Valve Switch Assembly is a fundamental and precisely engineered component within the air plumbing system of your Kwik-Way SVS II Deluxe Valve Refacer. This comprehensive unit is the dedicated air switch for the SVS II Deluxe Valve Refacer, responsible for precisely controlling the air flow to the machine’s advanced air-operated chuck, enabling rapid and efficient valve clamping.

Pre-Assembled and Leak-Tested for Immediate Installation:

One of the key advantages of this Air Valve Switch Assembly is its readiness for immediate use. It comes fully pre-assembled and has been meticulously tested against air leakage before shipment. This thorough preparation ensures that you can perform a quick and easy installation, minimizing downtime and getting your valve refacer back to optimal operation swiftly and reliably.

Components Included in this Complete Assembly:

This comprehensive, tested assembly consists of all the following genuine Kwik-Way components, integrated for seamless function:

• 003-0002-52: 5/32 O.D. Tubing
• 000-1598-90: 10-32 Max 5/32 Str. Fitting
• 000-1563-50: 10-32 Univ. El Fitting
• 012-1072-40: Air Switch Mounting Plate
• 003-0002-49: ¼ O.D. Tubing
• 000.1563-37: 10-32 Max ¼ Tube-In Str. Fitting
• 000-1563-29: 3-Way Air Valve

Central to the Kwik-Way SVS II Deluxe Air System:

The Kwik-Way SVS II Deluxe Valve Refacer is highly regarded for its air-operated, self-aligning six-ball chuck. This innovative chuck design opens quickly at the touch of a button – a function directly controlled by this Air Valve Switch Assembly. The air-activated chuck allows operators to efficiently work through a wide range of valve stem sizes without the cumbersome need to change collets, greatly enhancing productivity. The machine itself requires a minimum air pressure of 65 PSI for proper operation of this system.

Important Note on Optional Accessories:

Kwik-Way by Irontite also offers an optional air-operated foot pedal switch (012-0400-00). It is important to understand that while the foot switch provides convenient hands-free activation of the chuck, it is an add-on accessory and does NOT replace this Air Valve Switch Assembly. This assembly remains the core control mechanism for the air chuck’s operation.

By ensuring your Kwik-Way SVS II Deluxe Valve Refacer has a properly functioning Air Valve Switch Assembly, you maintain the quick, reliable, and versatile operation of its air chuck, leading to more efficient and precise valve refacing results.
