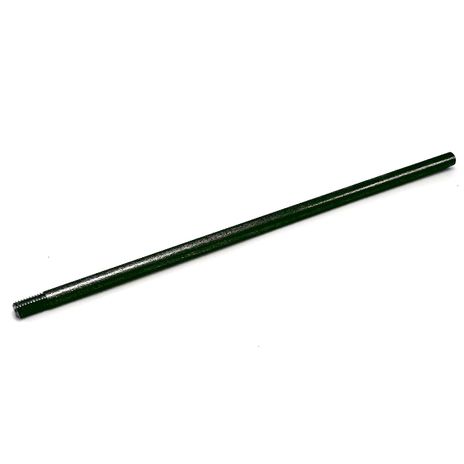

Gauge Handle

The Gauge Handle is a component found in multiple Irontite tooling kits designed for Cummins and GMC diesel engines. It is used in conjunction with specific gauges and a gauge finger to accurately set up and perform cutting operations for injector sleeve seats and tip protrusions.

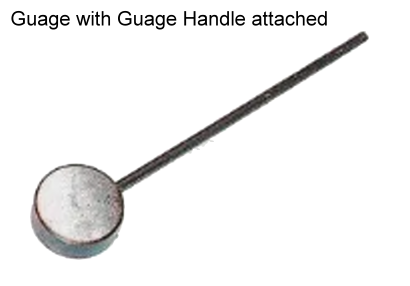

This Gauge Handle, is a crucial component within several Irontite tooling kits designed for precise measurements during injector sleeve work on Cummins and GMC diesel engines. This handle is specifically used to hold and manipulate various gauges in conjunction with a gauge finger (433-6991-00) to ensure accurate cutting and dimensional control.

The Gauge Handle [414-6111-30] is included in the following Irontite tooling kits:

• Cummins 250 Series Kit (PN:450-6152-50)
• ISX15 / QSX15 DOHC SERIES CASTING CUTTER KIT (PN:450-6110-60)
• ISX15 / QSX15 SOHC SERIES CASTING CUTTER KIT (PN:450-6117-60)
• ISX15 / QSX15 DOHC Kit (PN:450-6156-00)
• CUMMINS M-11 SERIES SLEEVE REMOVAL & INSTALLATION KIT (PN:450-6152-30)
• Complete GMC 50 / 60 Series Kit (PN:451-6471-00)

Specific Applications:

The Gauge Handle [414-6111-30] plays a important role in the following procedures:

• Cutting the seat in a new 250 series injector sleeve: It is used with a gauge (416-6152-94) and a gauge finger (433-6991-00) to establish the correct cutting depth and ensure proper injector seating.
• Cutting the injector tip protrusion for Cummins ISX15/QSX15 DOHC sleeves: The gauge handle holds a specific gauge (416-6156-94) which is positioned on the gauge finger (433-6991-00) to set the precise height for the tip protrusion.
• Cutting the injector tip protrusion for Cummins M-11 series sleeves: Similarly, a gauge (416-6152-98) is used with the gauge handle (414-6111-30) and gauge finger (433-6991-00) to ensure the correct dimensions of the injector tip protrusion.

In essence, the Gauge Handle [414-6111-30] is an indispensable tool for technicians working on these specific Cummins and GMC engines. It provides a stable and ergonomic way to manipulate the necessary gauges, leading to accurate and reliable injector sleeve seat and tip protrusion cutting operations.
