Removal Tool Threaded Body for Cummins C&J Copper Sleeve

Removal Tool Threaded Body for Cummins C&J Copper Sleeve - Precision Extraction Component

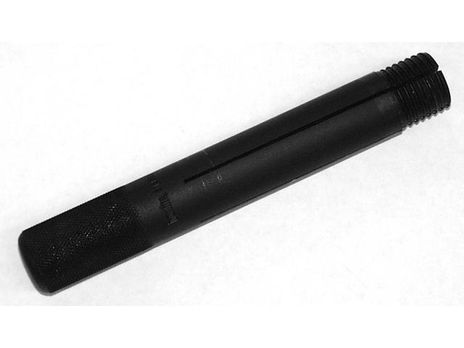

This Removal Tool Threaded Body is a specialized, precision-engineered component manufactured by Irontite Products Inc., designed for the efficient and safe extraction of copper injector sleeves from Cummins C&J series engines. A key part of the complete Removal Tool 415-6132-70, it works in crucial conjunction with Mandrel 415-6132-59. Its unique buttress threads are engineered to expand and tightly grip the copper sleeve as the mandrel is pressed down, facilitating smooth removal from various C&J models including JN-130, C-160, C-180, and JT-6, ideally using a hydraulic press.

Removal Tool Threaded Body for Cummins C&J Copper Sleeve - Essential for Injector Sleeve Extraction

The Removal Tool Threaded Body, manufactured by Irontite Products Inc., is a highly specialized and indispensable component for technicians performing maintenance on specific Cummins diesel engines. This tool body is exclusively designed for the precise and safe removal of copper injector sleeves found in Cummins C&J series engines.

Engineered for Cummins C&J Series Applications:

This tool body is meticulously crafted for copper injector sleeves in the following Cummins C&J series engines, which typically feature bore sizes of 4-⅛” and 4-7/6”:

• JN-130, JNF-130
• C-160, CF-160, CR-160
• C-175, C-180, C-190
• CS-195
• JS-6, JNS-6, JT-6

This Tool Body is a vital component of the Complete Removal Tool 415-6132-70 for C&J series engines, working in tandem with the specific mandrel designed for this application.

Precision Design and Functional Mechanics:

Injector sleeve removal tools, including this threaded body, typically consist of two primary parts: a mandrel and the removal tool body itself. For the Cummins C&J series, this tool body is specifically designed to work with Mandrel 415-6132-59.

The removal process leverages the unique design of this tool body:

1. The mandrel (415-6132-59) is first positioned up into the used copper sleeve, with its tapered end facing downward.
2. This removal tool body is then brought up into the sleeve, ensuring the tapered end of the mandrel is situated inside the tool body.
3. As the mandrel is subsequently forced downward, the specialized buttress threads on the tool body expand outward, creating a tremendously tight and secure grip on the interior of the copper sleeve.
4. Continued downward pressure on the mandrel then efficiently forces the entire assembly – the mandrel, the gripped copper sleeve, and the tool body – as one unit, safely out of the casting.

For optimal effectiveness and to ensure a smooth, controlled extraction, the use of a hydraulic press is highly recommended for this operation. This method minimizes the risk of damage to the cylinder head bore and other critical engine components.

By utilizing the Removal Tool Threaded Body with its corresponding mandrel, technicians can perform professional, damage-free copper injector sleeve removals, ensuring the integrity and longevity of Cummins C&J series engines.
