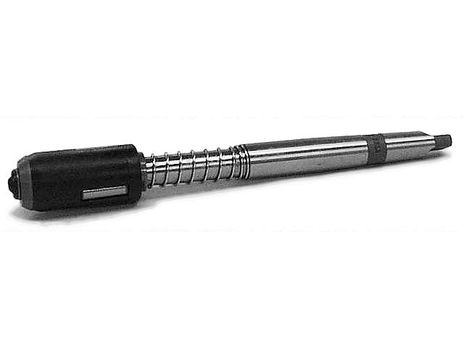

Sleeve Roll-In Tool Cummins 250, 400, 855, 903 VT1710 Copper Sleeve

The Sleeve Roll-In Tool with Tension Spring is essential for installing copper injector sleeves in Cummins 250, L-10, and M-11 engines. Operated in a seat and guide machine with quality motor oil lubrication, it expands the upper end of the new sleeve to ensure a secure fit and seal within the cylinder head.

The Sleeve Roll-In Tool with Tension Spring is a crucial component of the 450-6152-50 – 250 Series Installation Kit with Toolbox, designed for the precise installation of new injector sleeves in Cummins 250 Series engines. This tool is also specified for use with copper injector sleeves in Cummins L-10 and M-11 engine models.

Primary Function: The primary purpose of this sleeve roll-in tool is to expand the upper end of a newly installed copper injector sleeve. This controlled expansion ensures a tight and reliable fit within the cylinder head, which is critical for proper sealing and optimal engine performance.

Operating Procedure: The Sleeve Roll-In Tool is designed to be used in conjunction with a seat and guide machine. The operating procedure involves:

1. Inserting the tool into the newly installed injector sleeve.
2. Operating the machine at a speed of approximately 50 RPM.
3. Moving the tool downwards into the sleeve. As it moves, the rollers on the tool exert outward pressure, expanding the upper portion of the sleeve to the required diameter.
4. To remove the tool, the direction of rotation is reversed, and the tool is carefully drawn back out of the expanded sleeve.

Lubrication Requirement: Maintaining proper lubrication is vital for the smooth and effective operation of the sleeve roll-in tool. It is explicitly stated that all operating parts of the tool must be kept well lubricated with a “Quality Motor Oil” at all times. Note that “EA” Lube is NOT the recommended lubricant for this tool.

Engine Compatibility: Irontite Products specifically list the [416-6152-53] Sleeve Roll-In Tool under:

• SLEEVE INSTALLATION TOOLS - CUMMINS 250
• SLEEVE INSTALLATION TOOLS - CUMMINS L-10, M-11 COPPER INJECTOR SLEEVES

In summary, the [416-6152-53] Sleeve Roll-In Tool with Tension Spring is an essential tool for the correct installation and sealing of copper injector sleeves in Cummins 250, L-10, and M-11 engines. Proper operation in a seat and guide machine with quality motor oil lubrication ensures a reliable and long-lasting seal.
