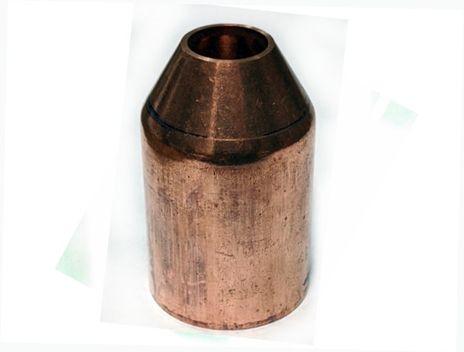

Cummins 250, L-10 & M-11 Copper Injector Sleeves

Copper Injector Sleeve for Cummins 250, L-10 & Early M-11 Series Engines - Consumable Component

This Copper Injector Sleeve, a specialized consumable component from Irontite Products Inc., is meticulously designed for Cummins 250 Series, L-10 Series, and Early M-11 Series engines (all featuring a 5-½” bore). Crucial for proper injector seating and reliable sealing, its comprehensive installation process involves thorough bore cleaning, optional casting seat refinement, application of Irontite Ceramic Seal (468-9120-16), a new O-ring (419-6192-52) lubricated with clean engine oil, precise driving with a specialized tool, controlled expansion with a Sleeve Roll-in Tool (using quality motor oil), and finally, precision cutting of the internal seat for proper injector tip protrusion with a Sleeve Seat Cutter and Tap-O (468-9920-08). This essential sleeve is sold separately, ensuring precise and durable repairs.

Copper Injector Sleeve for Cummins 250, L-10 & Early M-11 Series Engines - Precision Replacement

The Copper Injector Sleeve is a precision-engineered, specialized consumable component by Irontite Products Inc. This sleeve is explicitly designed for critical applications in Cummins 250 Series, L-10 Series, and Early M-11 Series engines, all of which feature a 5-½” bore. It’s important to note that while this copper sleeve serves earlier M-11 models, Cummins later transitioned to stainless steel injector sleeves (e.g., Part Number 419-6192-41) for updated M-11 Series Cylinder Heads.

Engine Application & Broad Compatibility (5-½” Bore):

This Copper Injector Sleeve provides a reliable sealing solution for a wide range of Cummins engine models:

• Cummins 250 Series: Including NH-230, NTC-400, NHC-250, NTA-370, NTC-250, NT-380, Super-250, NTA-400, Super-250/270, NTA-420, NT-270, NT-855, NT-280, V-903, NTC-290, V8-265, NT-310, V-785, NTC-335, V-927, NTC-350, VT-903, VT-1710, and N-14.
• Cummins L-10 and Early M-11 Series: This includes models such as L-10 – 300, L-10 – 400, L-10 – 350, L-10 – BC, and IV Formula, all utilizing the 5-½” bore.

Comprehensive Multi-Step Installation Process for Optimal Sealing:

The proper installation of this Copper Injector Sleeve is a detailed process that demands precision and the use of specific tools and materials to ensure a durable and leak-free seal:

1. Bore Cleaning: The injector sleeve bore within the cylinder head must be thoroughly cleaned of all carbon and debris using a carbon steel brush (e.g., Part Number 450-6951-02).
2. Casting Seat Refinement (Optional): If the casting seat has not been recently rebuilt, an optional casting seat cutter (e.g., Part Number 414-6114-26) can be used to clean out any serrations at the bottom of the injector seat. This step is critical for preventing water leakage when the sleeve is finally seated.
3. Sealant Application: Before installing the new sleeve, Irontite Ceramic Seal (Part Number 468-9120-16) should be carefully brushed onto the nose of the sleeve and the corresponding casting seat. This enhances sealing and provides crucial protection against water leakage.
4. O-Ring Installation: A new O-ring (e.g., Part Number 419-6192-52, designed for 250, L-10, and Small V series engines) must be adequately lubricated with clean engine oil and correctly installed into the casting groove.
5. Sleeve Driving: The prepared sleeve is then driven into the casting seat using an appropriate Sleeve Drive-In Tool (e.g., Part Number 416-6152-51 for 250 Series or Part Number 416-6152-61 for L-10/M-11) and a hammer. Continue driving until a distinct change in hammering sound indicates that the sleeve has fully bottomed out and is securely seated.
6. Sleeve Rolling/Expansion: After the sleeve is driven in, its upper end must be expanded for a final secure fit. This is achieved using a Sleeve Roll-in Tool (e.g., Part Number 416-6152-53 for 250/L-10, M-11 Copper) in a seat and guide machine. This process is performed at a slow RPM (around 50 RPM) and requires consistent lubrication with “Quality Motor Oil” (note: “EA” Lube (Part Number 468-9910-08) is specifically NOT to be used).
7. Final Seat Cutting for Tip Protrusion: The last step involves precisely cutting the internal seat within the new injector sleeve to achieve the proper injector tip protrusion. This operation utilizes a Sleeve Seat Cutter (e.g., Part Number 416-6152-27), a Driving Arbor (e.g., Part Number 414-6114-10), and a compatible Guide Bushing (e.g., Part Number 414-6114-32 for 250 Series or Part Number 414-6114-36 for L-10, M-11 & ISM). The cutting process should be well lubricated with Tap-O (Part Number 468-9920-08) and performed at a slow RPM (around 50-85 RPM) until the cutter’s pilot end contacts the corresponding Sleeve Seat Cutter Gauge (e.g., Part Number 416-6152-94 for 250, or Part Number 416-6152-98 for L-10, M-11 & ISM), which is accurately positioned with a Gauge Finger (Part Number 433-6991-00)).

Consumable Availability:

These Copper Injector Sleeves are considered consumable products and are typically sold separately, as they are not included as part of complete tooling kits like the 450-6152-50 for 250 Series. This ensures that replacement sleeves are readily available as needed for ongoing maintenance.
