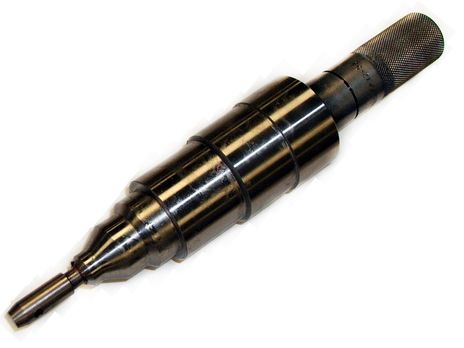

Sleeve Installation Tool (W/Pilot) for GM/DD 50 60 Series w/Copper Sleeve

The Sleeve Installation Tool (W/Pilot) is specifically designed for installing injector sleeves in GMC 50 and 60 Series Diesel engines. This tool, which is included in the Complete GMC 50 / 60 Series Kit with Toolbox (451-6471-00), features a Pilot (427-6462-60) to ensure accurate sleeve placement during the installation process.

The Sleeve Installation Tool (W/Pilot) is a specialized tool engineered for the precise installation of injector sleeves in GMC 50 and 60 Series Diesel engines. This tool is a key component of the Complete GMC 50/60 Series Kit (451-6471-00), providing technicians with the necessary means for accurate sleeve replacement.

A significant feature of this installation tool is the integrated Pilot (427-6462-60). During the injector sleeve installation procedure:

1. The new injector sleeve is carefully placed over the Pilot (427-6462-60), which is located at the working end of the Sleeve Installation Tool.
2. The tool, with the sleeve positioned on the pilot, is then used to gently tap the sleeve into the injector hole within the engine casting. This process continues until the new sleeve is fully seated and bottoms out in the bore.
3. Once the sleeve is completely installed, the Pilot (427-6462-60) is designed to be removed from the end of the Installation Tool. This removal step is necessary to allow for the subsequent flaring of the installed injector sleeve.

Refer to the included instructions for more details.

The Sleeve Installation Tool (W/Pilot) ensures proper alignment and controlled insertion of the injector sleeve, contributing to a reliable and leak-free seal within the engine. Its inclusion in the complete GMC 50/60 Series kit highlights its importance for servicing these specific diesel engines.
