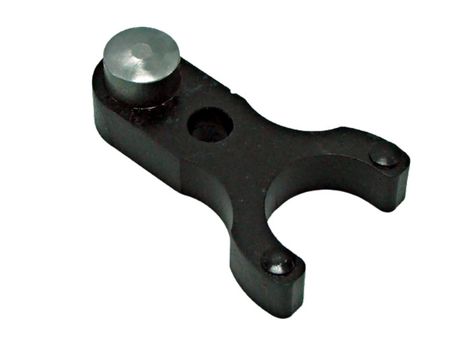

Clamp Assembly, GM/DD 50 & 60 Series Copper Sleeved

This Clamp Assembly is a component used in the tooling for GM/Detroit Diesel 50 & 60 Series injector sleeve removal and installation, specifically for engines with copper sleeves. It is a part of the Guide Bushing Assembly (433-6474-30).

This Clamp Assembly is a component of the specialized tooling designed for the removal and installation of injector sleeves in GM/Detroit Diesel 50 & 60 Series engines that utilize copper sleeves. The complete tooling kit for this series (451-6471-00) and includes various essential tools for the job.

While a “sleeve hold down clamp” is mentioned as part of the removal process for these engines, and a separate “Installation / removal tool” (433-6477-00) exists for stainless steel sleeves, this specific Clamp Assembly is a component of the Guide Bushing Assembly (433-6474-30). The Guide Bushing Assembly itself is part of the broader toolkit for servicing copper injector sleeves in GM/Detroit Diesel 50 & 60 Series engines, which also includes items like a Gauge Finger Assembly (433-6991-00).

The function of this Clamp Assembly within the Guide Bushing Assembly ensures proper alignment and stability during either the removal/installation process of the copper injector sleeves. It is a necessary part of the comprehensive tooling required for servicing these specific engine series with copper sleeves.
