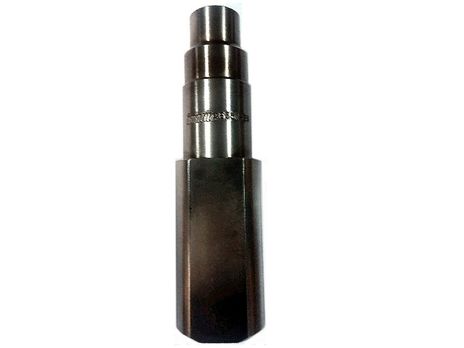

Tip Expander Driver CAT 3114, 3116, 3126 (2-Valve) Copper Sleeved

This Tip Expander Driver is specifically designed for Caterpillar 3114, 3116, and 3126 2-valve engines that utilize copper injector sleeves. It is a component of The Complete Caterpillar 3114, 3116, 3126 (2-valve) Kit with Toolbox (451-6551-00). This driver is used with a slide hammer assembly and a tip expander to expand the end of new injector sleeves during installation.

The Tip Expander Driver is a crucial tool for the proper installation of replacement injector sleeves in Caterpillar 3114, 3116, and 3126 2-valve engines equipped with copper sleeves. This driver is included within The Complete Caterpillar 3114, 3116, 3126 (2-valve) Kit with Toolbox (451-6551-00).

During the installation process, this Tip Expander Driver works in conjunction with the slide hammer assembly (437-6995-25) and the tip expander (437-6551-21). The procedure involves using the slide hammer assembly to apply force to the Tip Expander Driver. This tapping action continues until the tip expander reaches the bottom of the new injector sleeve’s nose. The resulting expansion of the smaller end of the replacement sleeve ensures a secure and tight fit within the cylinder head. Once the expansion is complete, the expanding unit, including the tip expander and driver, is withdrawn from the newly installed sleeve.
