Sleeve Drive in Tool Cat 3126B (3-Valve) SS Sleeved

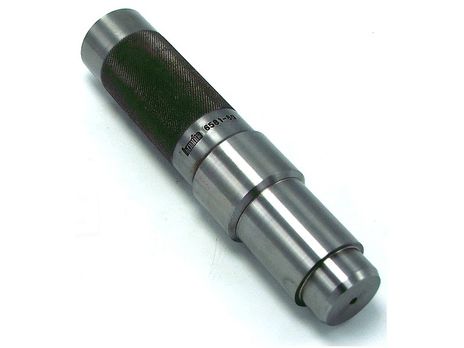

Irontite Sleeve Drive-In Tool - For CAT 3126B (3-Valve) SS Sleeved Engines

The Sleeve Drive-In Tool is a specialized product manufactured by Irontite, specifically engineered for the precise installation of new injector sleeves in Caterpillar 3126B (3-valve) Stainless Steel (SS) Sleeved engines. Designed for use with a hammer, this tool ensures the new sleeve is accurately driven and securely seated to the bottom of the casting, a process indicated by a change in hammering sound. This essential tool is an included component in the Complete Kit (451-6581-00) for the Caterpillar 3126B series. For optimal results, its use should follow recommended pre-installation steps such as bore cleaning, O-ring replacement, and sealant application.

Irontite Sleeve Drive-In Tool - Precision Installation for CAT 3126B (3-Valve) SS Sleeved Engines

The Sleeve Drive-In Tool is a precision-engineered product by Irontite, exclusively designed for the critical task of installing new injector sleeves in Caterpillar 3126B (3-valve) Stainless Steel (SS) Sleeved engines. This tool is fundamental for ensuring that new sleeves are seated correctly and securely within the cylinder head casting, which is vital for engine performance and longevity.

Primary Function: Precise and Secure Sleeve Installation:

The core function of this tool is to facilitate the accurate and controlled installation of new injector sleeves. It is designed to be used in conjunction with a hammer, allowing technicians to consistently drive the new injector sleeve to its proper depth at the bottom of the casting. This direct and controlled force ensures a secure and flush fit.

Dedicated Application and Kit Integration:

• This Sleeve Drive-In Tool is specifically tailored for Caterpillar 3126B engines with 3-valve configurations that utilize Stainless Steel (SS) Sleeved injectors. Its design ensures perfect compatibility and optimal results for this particular engine series.
• The tool is a key component included within the Complete Kit (Part Number 451-6581-00), which is dedicated to injector sleeve removal and installation for the Caterpillar 3126B series.

Recommended Pre-Installation Procedures for Optimal Results:

For best practices and to ensure a successful, leak-free installation, the following preparatory steps are generally recommended prior to using the drive-in tool:

1. Bore Cleaning: Thoroughly clean the inside of the injector sleeve bore in the cylinder head casting using a carbon steel brush to remove any residue or foreign material.
2. O-Ring Replacement: Remove the old O-ring from the sleeve and install a new O-ring, applying a thin coat of clean engine oil to facilitate installation and ensure a proper seal.
3. Sealant Application: Apply a small amount of Permatex High Heat Sealant (sleeve retainer) or an equivalent product to the lower nose section of the new injector sleeve. Ensure the sealant covers the area around the nose. Alternatively, brush Irontite Ceramic Seal onto the nose of the sleeve and the corresponding seat in the casting.

Confirming Proper Seating:

During the driving process, the sound of hammering may audibly change when the new sleeve is fully seated and has reached the bottom of the casting, providing a clear indication that the seating of the sleeve is complete and secure.

This Irontite Sleeve Drive-In Tool is an indispensable asset for rebuilders performing injector sleeve replacements on Caterpillar 3126B (3-valve) Stainless Steel Sleeved engines, ensuring precise installation and reliable engine repair.
