Sleeve Removal Tool for Navistar 7.3

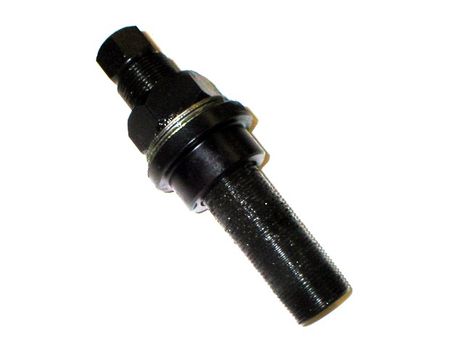

This Sleeve Removal Tool is a component of the complete kit (451-6773-00) for NAVISTAR/INT’L 7.3L Power Stroke, 466E & 530E engines. It features a threaded puller shaft that grips tapped injector sleeves, allowing for their removal using a puller bridge and nut.

This Sleeve Removal Tool is a crucial component within the complete 7.3L Power Stroke, 466E & 530E Series Kit w/ Toolbox (451-6773-00), specifically designed for the removal of worn injector sleeves in NAVISTAR/INT’L 7.3L Power Stroke, 466E & 530E diesel engines. This tool facilitates the efficient and effective extraction of old sleeves, preparing the engine block for the installation of new ones.

The sleeve removal process utilizing this tool involves a systematic approach:

1. Tapping the Sleeve: Initially, the upper end of the worn injector sleeve is threaded using the Tap (437-5331-66) and the Tap Guide Bushing (448-6771-40). This provides a secure point for the removal tool to grip.
2. Inserting the Removal Tool: The [448-6774-30] Sleeve Removal Tool, which features a threaded puller shaft, is then carefully inserted down into the interior of the tapped old sleeve.
3. Gripping the Sleeve: By applying torque to the puller shaft of the removal tool, the threads engage with the newly tapped threads inside the sleeve, creating a firm grip.
4. Mechanical Extraction: Finally, a puller bridge (or cup), a thrust bearing, and two thrust washers are positioned between the puller nut (located on the threaded shaft of the removal tool) and the face of the engine block. Tightening the puller nut then exerts upward force, mechanically pulling the old and worn injector sleeve out of the engine bore.

Its design, utilizing a threaded grip and mechanical leverage, provides a reliable method for removing even tightly fitted old sleeves.
