Removal Tool for Navistar 6.0

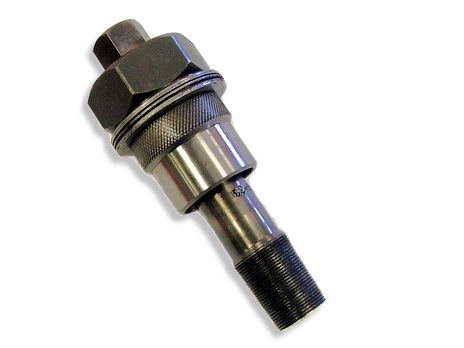

This Injector Sleeve Removal Tool is specifically designed for NAVISTAR/INT’L 6.0 engines. This tool utilizes a threaded puller shaft to grip the inside of a tapped worn injector sleeve, allowing for mechanical removal with the aid of a puller bridge and nut assembly.

This Injector Sleeve Removal Tool is an essential tool for the efficient removal of worn injector sleeves from NAVISTAR/INT’L 6.0 diesel engines. This tool is designed to work in conjunction with other components to provide a reliable mechanical extraction process.

The removal procedure using this tool involves the following key steps:

1. Tapping the Component: The upper end of the worn injector sleeve or glow plug must first be threaded using the appropriate Tap and Tap Guide Bushing. For added reach during this step, a Ratchet Tip Plug TQ Tool can be utilized as an extension.
2. Inserting the Removal Tool: The removal tool, which features a threaded puller shaft, is then carefully inserted down into the tapped interior of the old sleeve.
3. Securing the Grip: The puller shaft of the removal tool is then turned into the tapped threads until it establishes a firm and secure grip on the component being removed.
4. Setting Up the Puller Assembly: A puller bridge (or cup) is positioned to span across the face of the engine casting, providing a stable base for the extraction force. The thrust bearing and two thrust washers are placed between the puller nut (which threads onto the puller shaft) and the puller bridge. These components help to reduce friction and ensure smooth operation of the puller assembly.
5. Extracting the Sleeve: Finally, by tightening down the puller nut on the threaded shaft, an upward pulling force is generated. This mechanical force overcomes the friction and interference fit of the old sleeve, effectively pulling it out of the engine block.

This Injector Sleeve Removal Tool is a crucial tool for any technician servicing NAVISTAR/INT’L 6.0 diesel engines, providing a dedicated and effective method for removing potentially seized or damaged injector sleeves.
