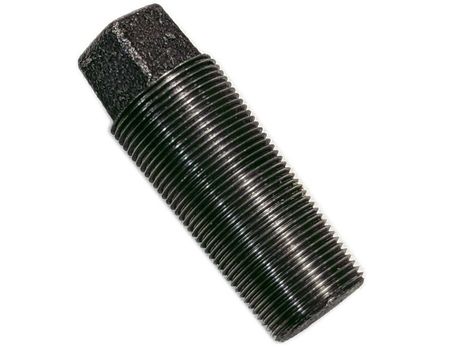

E-1 SOLID DIESEL IRON PLUG

This E-1 Solid Diesel Iron Plug is a robust plug sold individually. Key specifications include a 1 7/16 inch thread length (A) and a 0.590 inch small end diameter (B). Recommended tooling part numbers for drilling (407-5105-90), reaming (407-5205-90), and tapping (407-5305-90) are also provided for proper installation.

This E-1 Solid Diesel Iron Plug is a durable and reliable plug designed for various applications. This solid iron plug is sold individually and adheres to the E-1 type specification. For proper installation and a secure fit, please note the following critical dimensions and recommended tooling:

Key Specifications:

• Plug Type: E-1
• Thread Length “A”: 1 7/16 inches
• Diameter Small End “B”: 0.590 inches

Recommended Tooling (Sold Separately):

• Drill: For creating the pilot hole, the recommended drill part number is 407-5105-90, which is a 9/16 inch High-Speed Steel (HSS) Drill.
• Reamer: To ensure the correct bore size and finish for a proper seal, the recommended reamer part number is 407-5205-90. This corresponds to an HSS Tapered Reamer designed for E, E-1, and E-1 Special plug types.
• Tap: For creating the internal threads, the recommended tap part number is 407-5305-90. This is an HSS Tapered Tap specifically for E, E-1, and E-1 Special plug types.

Ensure proper installation and a tight seal by using the recommended drill, reamer, and tap. This E-1 Solid Diesel Iron Plug is a dependable component for your specific needs.
