J-2 Drilled Diesel Ductile Iron Repair Plug

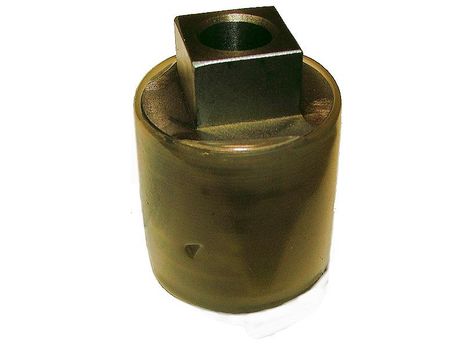

The J-2 Drilled Diesel Ductile Iron Repair Plug is a drilled ductile iron plug specifically designed for cold crack repair in diesel engine castings. It features a ½ inch (.500) hole, a thread length of 1 ½ inches, and a small end diameter of 1.312 inches. This plug is used with specific tooling like the 407-5213-10 tapered reamer and 407-5313-10 tapered tap.

The J-2 Drilled Diesel Ductile Iron Repair Plug, with the part number, is a crucial component in the Irontite cold crack repair process for various diesel engine castings. This plug is specifically manufactured from durable ductile iron to provide a robust and lasting repair solution.

A key distinguishing feature of the J-2 plug is that it is a “Drilled” type, indicated by the presence of a centrally located hole with a diameter “C” of ½ inch (.500). This differentiates it from the J-Solid plug (452-2613-13), which lacks this drilled hole.

The J-2 Drilled plug has the following dimensions: a Thread Length “A” of 1 ½ inches and a Diameter at the Small End “B” of 1.312 inches. These dimensions are critical for proper installation and sealing within the prepared casting.

Specific tooling is required for the installation of the J-2 Drilled Diesel Ductile Iron Repair Plug. The recommended HSS Tapered Reamer 407-5213-10, is used to prepare the hole in the casting, especially in thicker materials, ensuring a proper taper for the plug. The HSS Tapered Tap, part number 407-5313-10, is then used to create the necessary threads in the reamed hole to accept the plug.

In the Irontite cold crack repair process, ductile iron plugs like the J-2 are strategically torqued into drilled and tapped holes that intersect the crack. This mechanical installation effectively closes the crack and adds structural integrity to the casting. To ensure a leak-proof seal and address any potential porosity in the threads, Irontite Ceramic Seal (Part # 468-9120-16) is often applied to the threads of the J-2 plug before it is installed. The use of a quality tapping fluid, such as TAP-O (468-9920-08), is also recommended during the tapping process to facilitate clean and accurate thread cutting.

The typical procedure for utilizing J-series ductile iron plugs, including the J-2 Drilled version, involves drilling a pilot hole that intersects the crack, followed by reaming (if necessary), tapping threads, installing the plug, cutting off any excess material extending from the surface, and finally peening the remaining plug material to further close the crack and secure the plug within the threads.
