Flywheel Grinder Dresser Adjustment Collar

Flywheel Grinder Dresser Adjustment Collar - Precision Control for Wheel Dressing

The Flywheel Grinder Dresser Adjustment Collar is a key component of the Wheel Dresser Assembly on FG4000, FG5000, and FG10000 Flywheel Grinders. Often appearing as a knurled ring, its primary purpose is to precisely control and change the height of the wheel dresser during operation. By manipulating this collar, operators can gradually raise the dresser into light contact with the grinding wheel, allowing it to effectively remove dull or clogged particles. This action is crucial for restoring the grinding wheel’s cutting ability, maintaining a clean grinding surface, and minimizing heat generation in the workpiece. Proper use of this collar is vital for optimal grinding performance, especially when the grinding rate decreases.

Flywheel Grinder Dresser Adjustment Collar - Ensuring Peak Grinding Wheel Performance and Precision

The Flywheel Grinder Dresser Adjustment Collar is a precisely engineered component indispensable for the effective operation and maintenance of Van Norman FG4000, FG5000, and FG10000 Flywheel Grinders. As a key part of the Wheel Dresser Assembly, this collar provides the crucial control needed for optimal grinding wheel performance.

Purpose and Design:

• This component is identified as an Adjustment Collar, specifically designed to control and change the height of the wheel dresser.

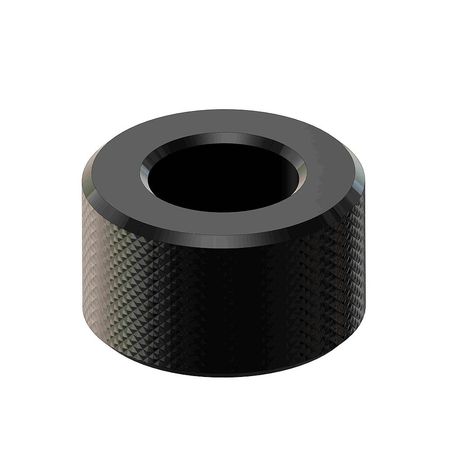

• Visually, it is often described or represented as a knurled ring, featuring a textured surface that allows for easy grip and precise rotation by the operator during adjustments.

Function in the Wheel Dressing Process:

The Dresser Adjustment Collar plays a pivotal role in the critical wheel dressing process:

• Precise Height Control: During dressing, the operator manipulates this collar to gradually raise the dresser (whether a “diamond” or “star” type) into controlled contact with the grinding wheel.
• Restoring Cutting Ability: This precise height adjustment allows the dresser to effectively remove dull or clogged abrasive particles from the grinding wheel’s edge, exposing fresh, sharp abrasive grains.
• Maintaining Cleanliness and Minimizing Heat: This action is vital as it not only restores the grinding wheel’s cutting ability but also helps to maintain a clean grinding surface. A clean wheel is crucial for generating minimal heat in the workpiece during grinding, preventing material distortion and ensuring a superior finish.

Operational Procedure:

To use the adjustment collar, the wheel dresser assembly is first positioned and swung under the grinding wheel. The operator then carefully and gradually rotates the adjustment collar. This rotation precisely raises the dresser until it makes light, uniform contact with the grinding wheel, allowing for very light cuts to systematically true up the wheel and reveal a new, effective grinding edge.

Importance for Grinding Performance:

Proper dressing of the grinding wheel, directly facilitated by the accurate control offered by this adjustment collar, is essential for consistent, high-quality results. The need for dressing is frequently indicated by a noticeable decrease in the grinding rate or a reduction in the consistent shower of sparks.

This Flywheel Grinder Dresser Adjustment Collar is an integral part of the overall Wheel Dresser Assembly, which can be acquired as a complete unit under part numbers like 794-8011-70 (Star Dresser Kit) or 794-8011-71 (Complete Wheel Dresser Assembly), ensuring comprehensive tool support for maintaining your flywheel grinder.
