Flywheel Grinder Star Dresser Wheel Assembly (no arm)

Flywheel Grinder Star Dresser Wheel Assembly (No Arm) - Restoring Grinding Wheel Efficiency

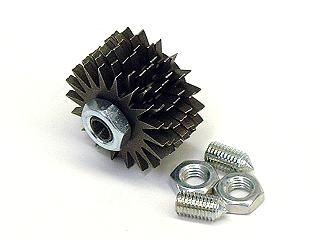

The Flywheel Grinder Star Dresser Wheel Assembly (No Arm) is the essential core rotating unit of the Wheel Dresser used on FG4000, FG5000, and FG10000 Flywheel Grinders that are utilizing grinding stones. Not for use with CBN wheels. Its primary purpose is to dress the grinding wheel by removing dull and clogged particles, thereby restoring its cutting ability and ensuring a clean grinding surface for minimal heat generation in the workpiece. This assembly is composed of seven individual Wheel Dresser Stars (794-8011-69) securely housed within a Star Dresser Hub. Distinct from the complete dresser assembly which includes a mounting arm, this component is manually operated by moving it back and forth into the grinding wheel, taking very light cuts to achieve a renewed grinding edge. It is indispensable for maintaining optimal grinding performance, buy not for CBN abrasives.

Flywheel Grinder Star Dresser Wheel Assembly (No Arm) - Ensuring Peak Grinding Wheel Performance

The Flywheel Grinder Star Dresser Wheel Assembly (No Arm) is a precisely engineered and vital component designed to maintain the cutting efficiency and extend the lifespan of grinding wheels on Van Norman FG4000, FG5000, and FG10000 Flywheel Grinders. This assembly represents the core rotating unit responsible for the dressing process.

Core Function: Essential Grinding Wheel Dressing:

• This assembly’s primary purpose is to actively remove dull and/or clogged abrasive particles that accumulate on the grinding wheel’s edge during operation. This crucial process is known as “dressing the wheel.”
• By performing this action, the assembly directly restores the grinding wheel’s cutting ability, exposing fresh, sharp abrasive grains. It also ensures a clean grinding surface, which significantly contributes to generating minimal heat in the workpiece during grinding operations, preventing material distortion and ensuring a superior finish.
• The need for dressing with this component is typically indicated by a noticeable decrease in the grinding rate, an increase in heat buildup, or a reduction in the consistent shower of sparks.

Composition and “No Arm” Clarification:

• This Star Dresser Wheel Assembly (no arm) is the functional heart of the dresser. It contains seven individual Wheel Dresser Stars (794-8011-69), which are securely housed and rotate within the Star Dresser Hub.
• It is crucial to understand the “no arm” distinction: this 794-8011-70 assembly refers specifically to the star-containing hub unit itself. It is sold separately from the main mounting arm (Dresser Arm, 794-8011-62) and Dresser Bracket (794-8011-68), which are included in the Complete Wheel Dresser Assembly (794-8011-71).

Operational Procedure and Maintenance Note:

• During the dressing process, the wheel dresser assembly (including this Star Dresser Wheel Assembly) is carefully swung under the spinning grinding wheel. Its height is gradually increased via an adjustment collar (794-8011-63) until the stars make gentle contact.
• For star dressers, this involves moving the dresser back and forth while gradually raising it into the grinding wheel, taking very light cuts to systematically remove dull material and reveal a fresh, sharp grinding edge.
• It’s important to note that this dresser style is not compatible with CBN wheels. They have their own different method using the CBN Dressing Stick (794-8011-10)](/p/8289).

By regularly utilizing the Flywheel Grinder Star Dresser Wheel Assembly (No Arm), operators can ensure their grinding wheels consistently deliver peak performance, achieve superior finishes, and contribute to the longevity of both the grinding wheel and the flywheel being processed.
