Lead Screw Nut "L" Bracket Clamp

Leadscrew Nut “L” Bracket Clamp - Critical for Flywheel Grinder Column Precision

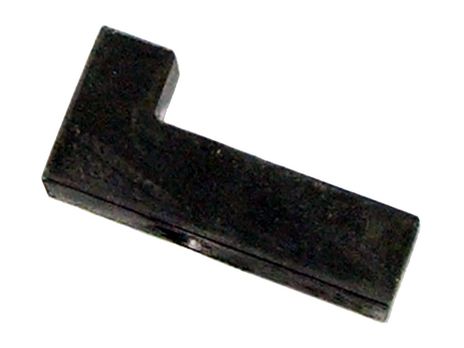

The Leadscrew Nut “L” Bracket Clamp is an essential L-shaped component vital for the precise functioning and adjustment of flywheel grinder column movement. Two of these clamps are required in the assembly. These clamps are typically secured to the lower support bar using socket head cap screws.

Leadscrew Nut “L” Bracket Clamp - Ensuring Stability and Precision in Flywheel Grinders

The Leadscrew Nut “L” Bracket Clamp is an engineered, L-shaped component that is absolutely critical for the accurate and stable operation of a flywheel grinder’s column movement. This robust clamp ensures that the grinding head maintains its intended position and movement, contributing significantly to the quality of the resurfacing work.

Design and Assembly Integration:

• This part is identified as a Leadscrew Nut Clamp and typically appears in the manual assembly diagrams.
• For optimal functionality, two (2) of these clamps are required in the assembly, working in tandem to secure the critical lead screw nut.
• These clamps are commonly secured to the lower support bar using specific fasteners such as socket head cap screws (000-0166-08).

Integral to Column Movement and Precision Control:

The Leadscrew Nut “L” Bracket Clamp is integral to the proper functioning and precise adjustment of the flywheel grinder’s column, directly impacting the accuracy and finish quality of the work.

In summary, the Leadscrew Nut “L” Bracket Clamp is a small yet critical component within the flywheel grinder’s leadscrew assembly. Its proper installation and adjustment are essential for maintaining the leadscrew nut securely in place, facilitating precise column movement adjustments, preventing problematic backlash, and ultimately ensuring the stability and accuracy required for high-quality flywheel resurfacing.
