Dial Indicator Bar Assembly

The Indicator Bar Kit / Assembly is an optional accessory for Van Norman Flywheel Grinders. It is also included as part of the 794-8627-83 Dial Indicator / Indicator Bar Set. This kit provides the necessary components for precise measurements, particularly in applications like stepped flywheel grinder adjustments on various flywheel grinders.

The Indicator Bar Kit / Assembly, is an optional equipment kit designed for the Van Norman Flywheel Grinders. This assembly is also a key component within the larger 794-8627-83 Dial Indicator / Indicator Bar Set, which is another optional accessory for Flywheel Grinders and is utilized for various precision adjustments on the FG5000, FG10000, FG4000 and FG4000R Racing Flywheel Grinders.

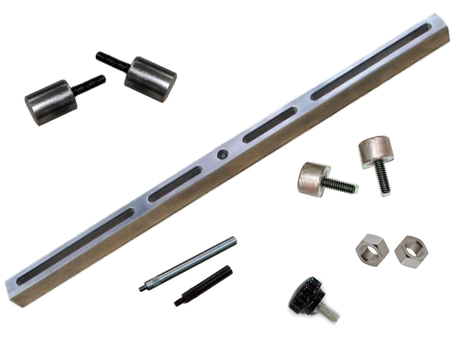

The 794-8013-24 Indicator Bar Kit includes the following items:

• Knob (794-8011-91)
• Indicator Bar (794-8013-25)
• Hex Nut .250-20 Jam (804-8013-29) - QTY 2
• Indicator Point 1 (1.00”) (794-8013-33)
• Indicator Point 2.5 (2.50” Extension) (794-8017-04)
• Foot Assembly .500 (794-8020-52) - QTY 2
• Foot Assembly 1.00 (794-8020-53) - QTY 2

This kit provides a versatile set of components for use with a dial indicator (not explicitly included in this kit). Notably, some of these components are shared with other Van Norman accessories. The Hand Knob (Part # 794-8011-91), the 1.00” Indicator Point (Part # 794-8013-33), and the 2.50” Extension (Part # 794-8017-04) are also found within the 794-8627-83 Dial Indicator / Indicator Bar Set. Additionally, the Hand Knob and these same indicator points/extensions are also part of the 794-8692-67 Step Comparator Kit.

The 794-8013-24 Indicator Bar Kit / Assembly offers the necessary hardware for precise measurements in various applications on various flywheel grinders, when used with a compatible dial indicator.
