Dial Indicator & Indicator Bar Kit
SKU: 794-8627-83MPN: 794-8627-83
Our Deluxe Dial Indicator and Indicator Bar Set.
$1,046.00
PieceProduct Details
Our Deluxe Dial Indicator / Indicator Bar Set
Used for checking Wheel Tilt and/or Step Comparator.

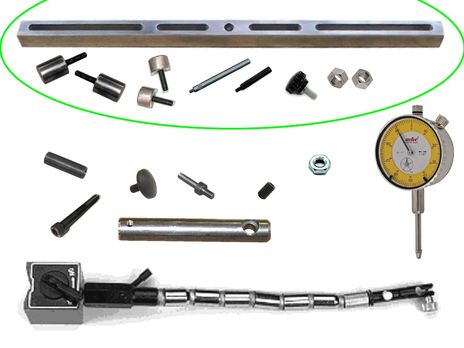

This kit includes:
| ¼“-20 X 3/16” SOCKET CUP POINT SET SCREW | 000-0485-10 | 1 |
| ¼-28 HEX JAM NUT-Z.P. | 000-1020-16 | 1 |
| 0-1” Dial Indicator | 001-0023-75 | 1 |
| Mounting Adapter | 794-8013-17 | 1 |
| Wheel Tilt Dial Indicator Bar Assembly | 794-8013-20 | 1 |
| ¾” Indicator Bar Set Spacer (2.50”) | 794-8013-21 | 1 |
| 0.375” Convex Point 4-48 | 794-8013-22 | 1 |
| SHCS .375-16X3.25 M ST BK | 794-8055-99 | 1 |
| Dial Indicator Magnetic Base with Flexible Arm | 794-8627-82 | 1 |
| Dial Indicator Bar *Assembly | 794-8013-24 | 1 |
*Items included in 794-8013-24 assembly
| Small Round Knurled Knob (¼“) | 794-8011-91 | 1 |
| BAR INDICATOR | 794-8013-25 | 1 |
| ¼“-20 HEX JAM NUT | 804-8013-29 | 2 |
| 1.0” Dial Indicator Point | 794-8013-33 | 1 |
| 2.5” Dial Indicator Extension | 794-8017-04 | 1 |
| .500” Dial Indicator Bar Foot Assembly | 794-8020-52 | 2 |
| 1.0” Dial Indicator Bar Foot Assembly | 794-8020-53 | 2 |
Specifications
| SKU | 794-8627-83 |
|---|---|
| MPN | 794-8627-83 |
