Heavy Duty Flywheel Centering Adapter Kit

The Heavy Duty Flywheel Centering Adapter Kit is essential for precisely mounting larger, heavy-duty truck flywheels (including specific Ford, Mack, and Cummins/GMC models) on Van Norman flywheel grinders. This kit includes multiple specialized adapters to ensure accurate centering and parallelism to the crankshaft mounting surface during the resurfacing process, crucial for proper flywheel function.

The Heavy Duty Flywheel Centering Adapter Kit is a valuable addition for any shop servicing heavy-duty trucks, enabling the accurate and secure mounting of larger flywheels on Van Norman flywheel grinders. This kit addresses the unique centering challenges presented by flywheels from manufacturers like Ford, Mack, and Cummins/GMC, ensuring the critical parallelism to the crankshaft mounting surface after resurfacing.

This specialized set includes the following adapters, precisely sized for specific heavy-duty applications: (links to individual adapters for replacement below)

• Adapter for Ford/Cat 205: 2.040” (51.8 mm)
• Adapter for Mack 305: 2.435” (61.8 mm)
• Adapter for Ford Truck: 2.495” (63.4 mm)
• Adapter for Cum/GMC 306: 2.830” (71.9 mm)
• Adapter for Ford 307: 3.149” (79.9 mm)
• Adapter for Ford Truck: 3.255” (82.7 mm)

Using the Heavy Duty Centering Adapter Kit:

To ensure accurate mounting, the appropriate adapter is selected based on the specific heavy-duty flywheel being worked on. This adapter is then used in conjunction with a smaller HD Centering Adapter that locks into the center hole of the grinder table. This two-part system provides exceptional support and precise centering, adhering to the principle of utilizing the largest possible flange adapter for maximum stability.

By incorporating the Heavy Duty Flywheel Centering Adapter Kit into your shop’s equipment, you eliminate the guesswork and frustration often associated with “universal centering systems” when trying to mount large, heavy-duty truck flywheels.

Instead of struggling with generic setups that may not provide a precise fit, this kit offers dedicated adapters specifically engineered for Ford, Mack, and Cummins/GMC flywheels. This ensures a direct, secure, and accurately centered mount on your Van Norman grinder table, saving you time, reducing the risk of errors, and guaranteeing the critical parallelism needed for a perfect flywheel resurfacing job.

This specialized approach expands your service capabilities and allows you to confidently tackle the profitable heavy-duty truck market with the precision and performance expected from Van Norman equipment.

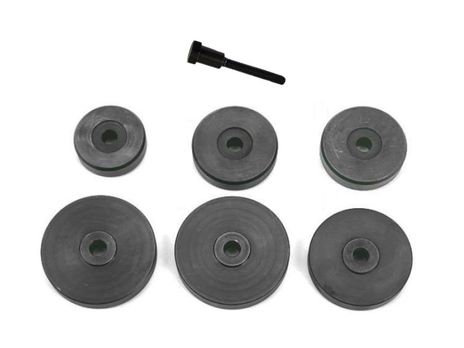

794-8680-18 Heavy Duty Centering Adapter Set
