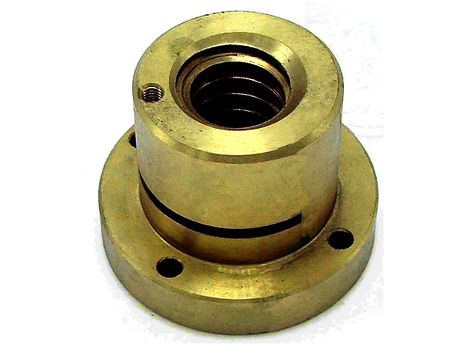

Leadscrew Nut FG4000, FG4000R

The Bronze Leadscrew Nut is specifically designed for the leadscrew and nut combination in both the Van Norman FG4000 and FG4000R Racing Flywheel Grinders. This essential part allows for backlash adjustment and is intentionally made of bronze to act as a replaceable wear element, protecting the leadscrew from damage.

This Bronze Leadscrew Nut is a vital component used in both the Van Norman FG4000 Flywheel Grinder and the FG4000R Racing Flywheel Grinder. Each machine requires one of these leadscrew nuts as part of its leadscrew and nut assembly.

This critical part is manufactured from bronze, a material chosen for its wear properties. The Leadscrew Nut plays a key role in the adjustment of leadscrew backlash. The amount of play or backlash in the system can be reduced by tightening a cap screw that passes through the bronze leadscrew nut.

The design of the leadscrew assembly intentionally utilizes a bronze nut as the primary wear component. Bronze is a softer metal than the steel used for the leadscrew itself. This design strategy ensures that the more easily replaceable bronze nut absorbs the majority of the wear during operation, thereby protecting the more costly and labor-intensive leadscrew from premature damage.

Proper maintenance is essential for the longevity of the leadscrew nut and smooth operation of the grinder head. Regular lubrication with Leadscrew Lube (794-8011-52) is recommended to minimize wear on the leadscrew nut and ensure consistent travel of the grinding head.

Over time, the threads of the bronze leadscrew nut will inevitably wear. A telltale sign of a worn leadscrew nut is a condition known as “head drop,” where the grinding head begins to slip on the threads during the grinding process. As soon as this “head drop” is noticed, it is strongly recommended to purchase and install a replacement leadscrew nut as soon as possible. While the grinder can technically still be used with a worn nut, the “head drop” issue will persist and progressively worsen, impacting the accuracy and quality of the grinding. Replacing the leadscrew nut in a timely manner is crucial for maintaining the performance and precision of your Van Norman flywheel grinder.
