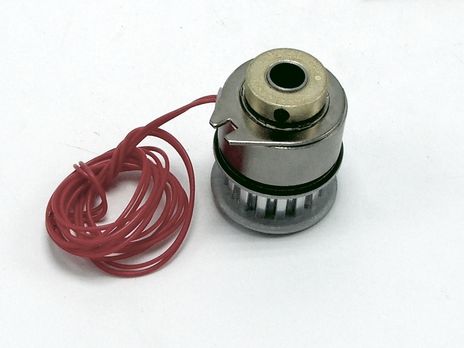

Autogrind electromagnetic spring clutch

The Drive Clutch is an electrically activated clutch pulley located on the Auto-Grind gear motor shaft of Van Norman FG5000 and FG10000 Flywheel Grinders. This component is essential for the operation of the Auto-Grind feature.

The Clutch, also known as the “Drive Clutch,” is a vital component within the optional Auto-Grind system available for Van Norman FG5000 and FG10000 Flywheel Grinders. This electrically activated clutch pulley is mounted on the small Auto-Grind gear motor shaft and plays a critical role in enabling the automated feed capabilities of the Auto-Grind feature. One clutch is required per machine equipped with this optional system.

The Auto-Grind system significantly enhances the flywheel grinding process by automating the downward feed of the grinding head, offering numerous benefits to the operator. One of the key advantages is precise and consistent depth control. The operator can easily determine the desired amount of material to be removed by simply rotating a graduated dial to the specified depth. Once set, the Auto-Grind system will automatically stop feeding and turn off the grinding head when this preset depth is reached, ensuring accuracy and preventing over-grinding.

Furthermore, the Auto-Grind system allows for an optimized grinding process. The operator has the ability to select a suitable down feed rate using a variable feed rate dial, starting with a slower rate and increasing it as they become more familiar with the specific grinding operation. The intelligent Auto-Grind system is also designed to protect the grinder motor by temporarily pausing the feed and then automatically restarting if it senses an overload during the grinding cycle.

By automating the downward feed, the Auto-Grind system eliminates the need for the operator to continuously turn a manual feed handle. This allows the operator to focus on other critical aspects of the grinding process, such as monitoring the grinding wheel and the workpiece, leading to increased efficiency and potentially higher quality results. This Drive Clutch is the component that enables this automation by engaging and disengaging the power to the feed mechanism as directed by the Auto-Grind control system. This precise control is essential for the accurate and reliable operation of the optional Auto-Grind system on your Van Norman flywheel grinder.
