Removal Stand Dowel Pin

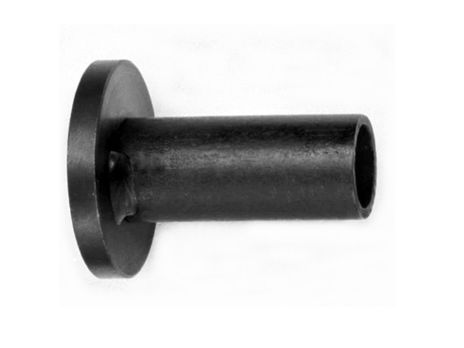

The Dowel Pin Puller Removal Stand is a key accessory for the Van Norman Dowel Pin Puller Kit (794-8684-78). This stand is specifically designed to provide a stable platform for safely and easily disengaging removed dowel pins from the collet at the end of the slide hammer assembly.

The Dowel Pin Puller Removal Stand is a thoughtfully designed component of the Van Norman Dowel Pin Puller Kit (794-8684-78), enhancing the usability and safety of the dowel pin removal process. After a dowel pin has been successfully extracted using the slide hammer and collet, it remains gripped by the collet. The Removal Stand provides a dedicated method for safely freeing the removed pin.

Here’s how the Removal Stand is typically used:

1. The complete slide hammer assembly, with the removed dowel pin still held by the collet, is placed onto the Removal Stand. The design of the stand likely cradles or supports the slide hammer in a stable position.
2. With the assembly resting on the stand, the user can then strike the head end of the slide hammer rod with a hammer or similar tool.
3. This impact forces the slide hammer and collet to move relative to the now-supported dowel pin, effectively dislodging the pin from the collet’s grip.
4. The removed dowel pin can then be safely retrieved from the Removal Stand.

The Dowel Pin Puller Removal Stand eliminates the need for awkward or potentially unsafe methods of trying to pry or knock the removed dowel pin free from the collet while holding the slide hammer. It provides a controlled and stable environment for this final step in the removal process. Its inclusion in the Van Norman Kit (794-8684-78) underscores the focus on user convenience and safety.
