Stepped Flywheel Comparator Kit

The Step Comparator Kit is an optional accessory for Van Norman FG5000 and FG10000 Flywheel Grinders, designed for accurately measuring the height difference between two surfaces on a flywheel. This kit is particularly valuable for grinding recessed flywheels, ensuring the correct depth between the pressure plate mounting surface and the clutch friction surface is achieved.

The Step Comparator Kit is an optional equipment package specifically designed to enhance the capabilities of Van Norman FG5000 and FG10000 Flywheel Grinders. This kit provides the necessary tools for precisely measuring step heights on flywheels, a critical measurement when dealing with recessed flywheel designs. Ensuring the correct step height is essential for proper clutch and pressure plate engagement after the flywheel has been resurfaced.

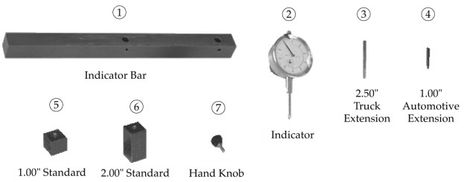

The Step Comparator Kit includes the following components:

Note: The Dial Indicator with Part Number 794-8013-19 was replaced by the above new Part Number.

How the Step Comparator Kit is Used:

A step comparator is a tool designed to accurately measure the difference in height between two distinct surfaces. In the context of flywheel grinding, particularly recessed flywheels, this kit allows the operator to precisely determine the depth between the pressure plate mounting surface and the clutch friction surface. This measurement is crucial to ensure that after grinding, the relationship between these surfaces is within the manufacturer’s specifications for proper clutch operation.

The process involves setting up the Indicator Bar and Dial Indicator on the flywheel surface, using the included Standards (1.00” and 2.00”) as known reference heights to calibrate the dial indicator. The extensions (Truck and Automotive) allow for reaching different measurement points on various flywheel sizes and designs. By using this kit, operators can take accurate measurements of the initial step height and then grind the appropriate surfaces to achieve the required final dimension. This ensures proper clutch engagement and prevents issues like clutch slippage or dragging.

The Step Comparator Kit is an invaluable tool for any shop working on a variety of flywheels, especially those with recessed designs, ensuring precise and accurate resurfacing to OEM specifications.
