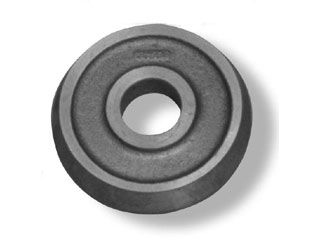

Flywheel Centering Cone 5.50-6.50 (1.7/8"I.D.)

Flywheel Centering Cone 5.50-6.50” (1.⅞” I.D.) - Reliable Workpiece Alignment

This Flywheel Centering Cone, designed for 5.50 to 6.50-inch (1.⅞” I.D.) flywheel centers, is a key part of getting your workpiece properly set up on the grinder table. It works with flange adapters and hold-down bolts to help you guide the flywheel onto center using its angled surface. Over time, these cones can get dinged, dented, or rusty, affecting their ability to reliably center the flywheel. Replacing a damaged cone ensures a stable and secure hold for consistent grinding.

Flywheel Centering Cone 5.50-6.50” (1.⅞” I.D.) - Essential for Secure Flywheel & Brake Rotor Setup

Get your flywheels and heavy-duty brake rotors securely mounted and properly aligned for grinding with this dedicated Flywheel Centering Cone. Designed for workpieces with a center bore ranging from 5.50 to 6.50 inches (and a 1.⅞” I.D.), this cone is a fundamental part of your grinder’s hold-down system.

How it Works for Reliable Setup:

1. Foundation: First, for flywheels, place a clean compatible flange adapter on your grinder’s clean table.
2. Workpiece Placement: Next, set the flywheel or heavy-duty brake rotor on top of that flange adapter. In most brake rotor mounts no flange adapter is needed.
3. Guiding Mechanism: Insert this centering cone into the workpiece’s center bore. Its carefully angled outer surface allows you to easily nudge or pull the workpiece into proper alignment on the table.
4. Secure Fastening: Once centered, a hold-down bolt passes through the cone and threads into the table, tightening down to firmly secure the workpiece for grinding.

Benefits for Your Grinding Process:

• Reliable Alignment: This cone helps ensure your workpiece is consistently centered, which is crucial for balanced material removal and avoiding uneven grinding patterns on both flywheels and brake rotors.
• Enhanced Stability: When properly used with a hold-down bolt and flange adapter, this cone contributes to a rock-solid setup, minimizing workpiece movement and vibration during grinding.
• Versatile Application: This larger-sized centering cone is designed not only for flywheels but also works seamlessly with our optional Heavy Duty Brake Rotor kit. Our kit allows you to accurately center heavy-duty vehicle brake rotors, typically ranging from 4.5 inches up to 8.125 inches in diameter, on your grinding table.
• Part of a Complete System: This centering cone works seamlessly within a full range of flywheel hold-down tooling, including various sizes of cones, flange adapters, and hold-down bolts, allowing you to secure almost any workpiece.
• Efficient Setup: Its straightforward design helps streamline the workpiece mounting process, making your grinding setup quicker and more efficient.

When to Consider Replacement:

Over time, from regular use in the shop, your centering cone may become dinged, dented, or rusty. While the cone’s primary role is to assist with alignment and secure holding, significant damage can prevent proper seating or make it harder to center the workpiece reliably. Replacing a worn or damaged centering cone ensures you can consistently achieve a stable and accurate workpiece setup, leading to better grinding results and less frustration.
