Advanced Engine Valve Restoration Techniques:

When it comes to rebuilding a cylinder head, thorough inspection and restoration of the valves are crucial for optimal engine performance and longevity. Professional mechanics and engine builders are increasingly turning to precision equipment like the Kwik-Way SVSII Deluxe valve grinding machine to achieve superior results. Let’s explore the valve restoration process, highlighting how this advanced machine elevates the quality and efficiency of the work.

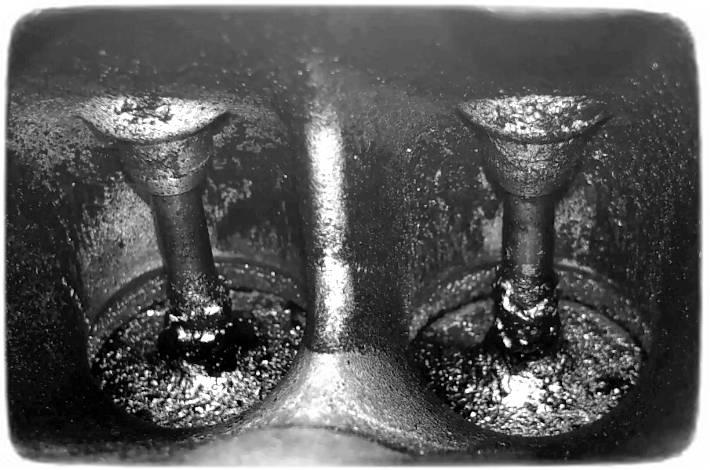

1. Visual Inspection and Initial Cleaning Begin with a careful visual inspection of the valves, looking for signs of wear, damage, or deformation. Clean off carbon deposits using a gasket scraper, wire brush, and solvent. This initial step prepares the valves for more precise examination and restoration.

2. Precision Measurement and Analysis Accurately measure valve stem diameters and overall length using micrometers and calipers. The Kwik-Way SVSII Deluxe valve grinder complements these measurements with its unique precision 6-ball chuck, allowing for extremely precise centerline capture of the valve for grinding. With the Kwik-Way Chuck’s unique design, it firmly grips the valve stem at two points, 2.5 inches apart, precisely aligning the valve face with the stem guide. This means that when you’re done re-facing, your valve face will be concentric with the stem guide and perfectly aligned with the valve stem guides themselves.

3. Professional-Grade Valve Grinding This is where the Kwik-Way SVSII Deluxe truly shines. Unlike other valve grinding machines, this machine offers:

   • Precise angle settings for perfect valve face restoration
   • Consistent pressure and rotation speed for uniform material removal
   • Minimal valve length reduction, extending component lifespan
   • Ability to handle a wide range of valve sizes and types
   • Extremely fast loading and unloading of the valves in the chuck reducing job time length
   • Heavy duty cast iron construction reducing vibration and providing long life of the machine

The machine’s precision ensures that each valve is ground to exact specifications, something difficult to achieve with other machines or less advanced equipment.

1. Valve Seat Matching The Kwik-Way SVSII Deluxe allows for perfect matching between the valve face and seat. This precision fit is crucial for:

   • Optimal sealing, preventing compression loss
   • Improved heat transfer from the valve to the cylinder head
   • Enhanced overall engine efficiency and performance

2. Quality Control and Verification After grinding a valve, you can check if it’s seated well by making sure it rotates freely and doesn’t squeak when you turn it.

   1. Clean the surfaces: Use a cloth to thoroughly clean both surfaces of the valve and valve stem. 2. Dry pass: Give the valve a dry pass. 3. Rotate: The valve should rotate freely when both surfaces are clean and smooth. 4. Squeak: If the valve squeaks when you turn it, the seat is probably still too rough.

There are many different methods for testing how well your valves are seating:

• Vacuum Test: This involves applying vacuum to the intake or exhaust ports while the valves are closed to check for any drop in vacuum pressure, indicating a leak.

• Pressure Test: Similar to vacuum testing, but involves pressurizing the intake or exhaust ports with compressed air to detect leaks through the valves.

• Water Test: This method involves applying a small amount of water to the valve seats while the engine is running and observing for bubbles, which indicate a leak.

• Smoke Test: Using a smoke machine to introduce smoke into the intake or exhaust system can reveal leaks around the valve seats by observing where smoke escapes.

• Visual Inspection: Inspecting the valve seats and valves themselves for signs of wear, pitting, or damage that could lead to leaks.

• Leak Down Test: Conducting a leak down test on the cylinder to check for leakage past the valves using compressed air.

• Compression Test: Checking the compression levels in each cylinder can indirectly indicate valve sealing issues if there are significant variations between cylinders.

These methods vary in complexity and effectiveness depending on the specific engine and the type of suspected valve leak. Each approach helps diagnose different aspects of valve sealing integrity in an engine. These methods are used to ensure that each valve meets the highest standards of precision and quality.

1. Comprehensive Valve Train Assessment While the Kwik-Way SVSII Deluxe focuses on valve face restoration, don’t forget to inspect and address other valve train components:

   • Check valve guides for wear and replace if necessary
   • Inspect valve springs for proper tension
   • Examine rocker arms and pushrods for any signs of wear

By incorporating the Kwik-Way SVSII Deluxe into your valve restoration process, you’re not just repairing engines – you’re optimizing them for peak performance. This machine’s precision and consistency translate to:

• Extended engine life due to perfectly sealed combustion chambers
• Improved fuel efficiency from optimal valve operation
• Enhanced engine power output thanks to ideal airflow characteristics
• Reduced chance of premature valve failure or seating issues

The level of precision and efficiency offered by the Kwik-Way SVSII Deluxe represents the gold standard in professional engine building and restoration. By investing in this technology, mechanics and engine builders can deliver superior results, ensuring that every engine leaves their shop performing at its absolute best.

Remember, proper valve restoration is not just about fixing problems – it’s about unlocking an engine’s full potential. With the Kwik-Way SVSII Deluxe, you’re equipping yourself with the tools to do just that, setting a new benchmark in engine performance and reliability.
