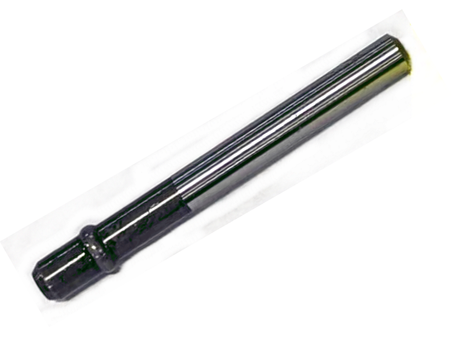

Tip Expander- Volvo D13/Mack MP8

This Volvo D13 / Mack MP8 tip expander is a precision expanding tool that passes through the nose of the installed injector sleeve to flare and lock the tip in the cylinder head casting. Used together with the dedicated tip expander driver and Permatex anti‑seize, it provides controlled expansion of the sleeve tip in Volvo D13 and Mack MP8 injector bores, helping ensure a durable, leak‑free seal.

Volvo D13 / Mack MP8 Tip Expander

This tip expander is a dedicated expanding tool used during injector sleeve installation on Volvo D13 and Mack MP8 cylinder heads. After the new stainless steel sleeve is seated in the bore, the expander is driven through the lower (combustion‑chamber) end of the sleeve to flare the nose and lock it firmly into the casting.

This controlled expansion is critical to long‑term sleeve retention and sealing performance.

Engine‑Specific Design

• Designed for Volvo D13 cylinder heads
• Designed for Mack MP8 series cylinder heads
• Sized and profiled for the stainless injector sleeve used in these applications

The geometry of the expander is matched to the injector sleeve nose, so expansion occurs at the correct location and to the proper extent when used with the companion driver.

Used with the Tip Expander Driver

The tip expander works in conjunction with the dedicated tip expander driver as outlined in Irontite’s Injector Sleeve Removal & Installation Manual:

1. Assemble the tools

   • Attach the tip expander to the tip expander driver.

2. Lubricate the expander

   • Apply Permatex anti‑seize lubricant to the expander to reduce friction and prevent damage as it passes through the sleeve.

3. Position at the sleeve nose

   • From the injector‑bore side of the head, position the expander at the nose of the installed injector sleeve.

4. Drive the expander through

   • Using a hammer on the driver, push the expander through the small opening at the combustion‑chamber end of the sleeve.
   • As it passes through, the tapered profile expands the lower tip of the sleeve outward into firm contact with the machined seat in the head.

5. Remove the expander

   • From the combustion‑face side of the cylinder head, remove the tip expander and withdraw the driver from the sleeve.

Why Proper Tip Expansion Matters

Correct use of the tip expander:

• Mechanically locks the injector sleeve into the casting, supplementing the bond from high‑heat sleeve retainer
• Improves sealing at the combustion‑chamber end of the sleeve
• Reduces the risk of leaks between the sleeve, casting, coolant, and combustion gases
• Helps prevent sleeve movement under thermal cycling and engine vibration

Because it is engineered specifically for Volvo D13 / Mack MP8 sleeves, the expander provides consistent, repeatable results that improvised tools cannot match.

Part of the Professional Volvo D13 / Mack MP8 Sleeve System

This tip expander is included in Irontite’s professional injector sleeve kit for Volvo D13 and Mack MP8 engines, alongside:

• Tip expander driver
• Sleeve removal tool
• End‑facing counterbore cutter with pilot and guide bushing
• Driving arbor
• Upper bore/face and tip brushes
• EA Lube cutting fluid
• High‑heat sleeve retainer and anti‑seize
• Metal toolbox and full instructions

Shops can also purchase the expander individually as a replacement tool for existing kits.

Ideal Users

• Diesel engine rebuilders and machine shops
• Heavy‑duty truck repair facilities
• Fleet maintenance departments servicing Volvo D13 / Mack MP8 engines

Whenever new injector sleeves are installed, this expander is the critical tool to finish the job to professional standards.

Key Features

• Application‑specific tip expander for Volvo D13 / Mack MP8 injector sleeves
• Used with the dedicated tip expander driver
• Expands the sleeve nose from the combustion‑chamber side of the head
• Helps ensure secure sleeve retention and reliable sealing
• Professional‑grade construction for repeated shop use
• Included in Irontite’s Volvo D13 / Mack MP8 injector sleeve professional kit
