Volvo D13/Mack MP8 Injector Sleeve Basic Kit

This Volvo D13 / Mack MP8 Basic Injector Sleeve Kit includes the core tools and supplies needed to remove old injector sleeves and install new stainless sleeves without supplying seat‑cutting equipment. It provides the sleeve removal tool, tip expander and driver, upper bore/face and small tip brushes, Permatex 64000 High Heat Sleeve Retainer, Permatex Anti‑Seize, and a metal toolbox. Designed for engine builders and shops that already have their own method of cleaning or machining the injector sleeve seats but need a complete solution for sleeve removal and installation.

Volvo D13 / Mack MP8 Injector Sleeve Basic Kit

The Volvo D13 / Mack MP8 Injector Sleeve Basic Kit is a streamlined, professional‑grade tooling package for removing and installing injector sleeves in Volvo D13 and Mack MP8 series cylinder heads.

This kit is intended for shops that already have a preferred method or equipment for cleaning/machining the injector sleeve seats, and therefore do not need the end facing counterbore cutter, pilot, guide bushing, or driving arbor that are included in the full PRO kit. Instead, it focuses on the critical tools for sleeve removal, bore cleaning, sleeve installation, and tip expansion.

What the Basic Kit Includes

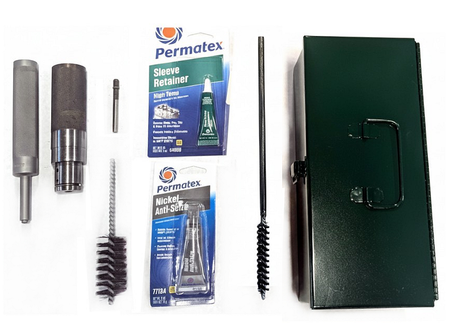

According to the Basic Kit instructions (Doc PN 451‑3540‑14), the kit contains:

• Sleeve Removal Tool (PN 445‑6682‑10)
  • Pilots into the small opening at the combustion‑chamber end of the injector sleeve.
  • Used with a hammer to drive the sleeve out toward the injector bore, helping prevent damage to the head casting.

• Tip Expander Driver (PN 445‑6681‑25)
  • Used to drive the injector sleeve into the bore until fully seated at the bottom of the casting.
  • Also used to drive the tip expander through the sleeve nose during the final expansion step.

• Tip Expander (PN 445‑6681‑21)
  • Assembled with the driver and lubricated with anti‑seize, then driven through the nose of the newly installed sleeve.
  • Expands and flares the sleeve tip at the combustion end to mechanically lock it in place and improve sealing.

• Permatex 64000 High Heat Sleeve Retainer (PN 468‑9640‑00)
  • Applied to the lower end of the stainless injector sleeve (PN 419‑6681‑05).
  • Bonds the sleeve to the head casting, providing high‑temperature retention and sealing.

• Small Tip Bore Brush (PN 450‑6951‑08)
  • Cleans the small tip bore area at the combustion‑chamber end of the injector sleeve bore.
  • Removes carbon, rust, and debris before sleeve installation and before tip expansion.

• Combo Large Brush – Upper Bore/Face (PN 450‑6951‑07)
  • Cleans the injector sleeve upper bore and face area.
  • Removes deposits that could interfere with sleeve seating and bonding.

• Permatex Anti‑Seize Lubricant (PN 468‑9771‑34)
  • Applied to the tip expander before driving it through the sleeve nose.
  • Reduces friction and prevents galling of the expander and sleeve.

• Metal Toolbox (PN 467‑1950‑25)
  • Stores and protects the kit components in a convenient, ready‑to‑use package.

• Basic Kit Instructions (Doc PN 451‑3540‑14)
  • Step‑by‑step guidance for sleeve removal, bore cleaning, sleeve installation, and tip expansion.

Note: The stainless steel injector sleeves themselves are sold separately as Volvo D13 / Mack MP8 Stainless Steel Injector Sleeve w/O‑Ring (PN 419‑6681‑05).

What This Basic Kit Does Not Include

The Basic Kit is specifically designed for customers who already have a way to clean up the injector sleeve seats and do not need Irontite’s seat‑cutting components. Compared to the PRO kit, it does not include:

• End Facing Counter Bore Cutter (PN 445‑6683‑30)
• Counterbore Pilot (PN 416‑6158‑62)
• Guide Bushing (PN 416‑6158‑32)
• Driving Arbor (PN 414‑6114‑10)
• EA Lube cutting fluid (PN 468‑9910‑08)

This makes the Basic Kit a cost‑effective option when you already own resurfacing/seat‑machining tooling, a surfacer, or other preferred equipment for restoring the injector sleeve seat.

How the Basic Kit Is Used (Process Overview)

1. Remove the Old Sleeve

   • With the head removed from the engine, insert the pilot tip of the sleeve removal tool into the small opening at the combustion‑chamber end of the sleeve.
   • Ensure it is seated and held square to the sleeve.
   • Tap with a hammer to drive the sleeve out toward the injector bore on the top side of the head.

2. Clean the Bore and Tip Area

   • Use the combo large brush to clean the upper injector sleeve bore and face area.
   • Use the small tip bore brush to clean the lower tip area at the combustion‑chamber end.

3. Prepare the New Sleeve

   • Install the O‑ring on the new stainless steel sleeve (PN 419‑6681‑05).
   • Apply Permatex 64000 High Heat Sleeve Retainer to the lower end of the sleeve.

4. Install the Sleeve

   • Position the sleeve in the bore.
   • Use the tip expander driver and a hammer to drive the sleeve fully down until it seats at the bottom of the casting.

5. Expand the Sleeve Tip

   • Assemble the tip expander with the driver.
   • Apply Permatex Anti‑Seize to the expander.
   • Position the expander at the nose of the sleeve and drive it through with a hammer.
   • Remove the expander from the combustion face and withdraw the driver from the sleeve.

This procedure locks the new injector sleeve in place and provides a secure, leak‑resistant seal when combined with proper head and seat preparation performed using the shop’s own equipment.

Ideal For

• Engine rebuilders and machine shops that already have seat‑cutting or surfacing equipment
• Heavy‑duty truck repair facilities servicing Volvo D13 and Mack MP8 engines
• Fleets that perform in‑house head reconditioning and want dedicated sleeve removal/installation tooling without duplicating existing machining capabilities

If you need a complete system including seat‑cutting tooling, the PRO version of the Volvo D13 / Mack MP8 Injector Sleeve Kit (PN 451‑6681‑00) is the better choice. If you already have a trusted method for cleaning or machining the sleeve seats, this Basic Kit is the more economical and targeted solution.

Key Features

• Basic injector sleeve kit for Volvo D13 / Mack MP8 cylinder heads
• Includes tools for sleeve removal, bore cleaning, sleeve installation, and tip expansion
• Designed for use with stainless steel injector sleeves (PN 419‑6681‑05), sold separately
• Does not include seat‑cutting/counterboring tooling, making it ideal for shops that already have their own method of seat cleanup
• Supplied with Permatex 64000 High Heat Sleeve Retainer and Permatex Anti‑Seize
• Delivered in a durable metal toolbox with detailed instructions
