Replacement tools for Irontite Diesel Injector installation and removal kits for Cummins

416-6156-43 Nose Roll-In Tool for precise injector sleeve installation in Cummins ISX15/QSX15 DOHC engines. Requires motor oil lubrication.

Professional M-11 sleeve nose roll-in tool (416-6152-45) for precise stainless steel injector sleeve installation in Cummins M-11 cylinder heads.

Roll-In Tool for Cummins ISX15/QSX15 DOHC Engines. This specialized tool rolls in the upper end of new stainless steel injector sleeves for precise seating. Made in USA.

Drill Bushing for Cummins ISX15/QSX15 DOHC Casting Series. Guides the drill for accurate drilling through the replacement plug during injector seat repair.

Gauge Handle used in various Irontite tooling kits for Cummins and GMC diesel engines to hold gauges during injector sleeve seat and tip protrusion cutting procedures.

Injector Sleeve Drive-In Tool for Cummins ISX15/QSX15 DOHC Series Engines. Designed for precise installation and proper seating of new injector sleeves. Made in USA.

Injector Sleeve Roll-in Tool for the Cummins ISM, M-11 Stainless Sleeves

Our exclusive designed carbide Injector Sleeve Seat Cutter. Suitable for both Stainless steel and Copper injector cups.

Precision 5-fluted carbide casting seat cutter for Cummins 220, 250, 855, L-10, M-11 & ISM engines. Ensures accurate cleaning and leak prevention.

Injector Sleeve Seat Cutter (Carbide) for Cummins ISX15/QSX15 DOHC engines. Used with a guide bushing and arbor to cut the injector tip protrusion to the correct height.

Extended Tap for Cummins ISX15/QSX15 DOHC & SOHC Series. Used to thread worn injector sleeves for removal.

Sleeve Roll-In Tool with Tension Spring for installing copper injector sleeves in Cummins 250, L-10, and M-11 engines. Expands the sleeve end for a proper seal. Use with quality motor oil.

Injector Sleeve Roll-In Tool for Cummins X-15, ISX-15, and QSX-15 SOHC Cylinder Heads.

Seat Cutter Bushing for Cummins ISX15/QSX15 and Tap Guide Bushing for Cummins X12

Removal Tool Threaded Body for Cummins Copper Sleeves Essential component for extracting copper injector sleeves from Cummins 250, L-10, and M-11 engines. Requires a hydraulic press for final removal.

Tap 1-3/16”-12 for Cummins M-11 (Stainless Steel Sleeves) & CAT 3114/3116/3126 (Copper Sleeves). Threads old sleeves for removal. Included in specific tooling kits.

Flat Tip Protrusion Gauge for Cummins 220, 250, 400, 855, and VT1710 engines. Checks injector tip protrusion in the .060” to .070” range, ensuring precise engine rebuilds.

Removal Tool Mandrel for Cummins C&J and Sm/V Copper Injector Sleeves. This is one part of a two-piece tool, designed for precise, damage-free extraction and available as a direct replacement.

Removal Tool for Cummins ISX15/QSX15 DOHC & X15 SOHC Engines. Used for extracting old injector sleeves. Included in specific tooling kits.

ISX15 / QSX15 SOHC Roll-In Tool Arbor Only

T-Handle Wrench used in Cummins ISX15/QSX15 and X12 Injector Sleeve Removal and Installation Kits.

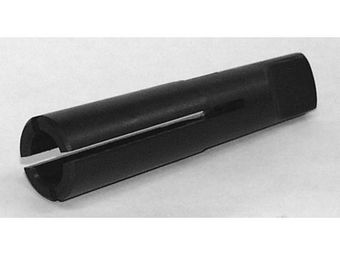

Split Sleeve Tap Driver ⅞” ID

Universal Driving Arbor (All Series) for diesel engine injector sleeve and casting seat cutters. Compatible with all Cummins ISX/QSX, M-11/ISM, L-10, 250, and GMC 50/60 Series engines. Made in USA.

Enlarging Counter Bore Cutter (1-¼” Diameter) for Cummins ISX15/QSX15 DOHC & SOHC Engines. Used to prepare the injector hole for repair.
