Replacement tools for Irontite Diesel Injector installation and removal kits

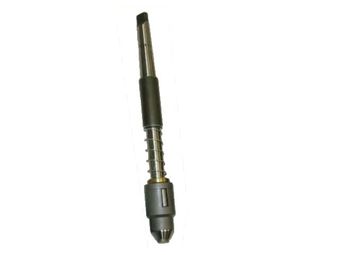

416-6156-43 Nose Roll-In Tool for precise injector sleeve installation in Cummins ISX15/QSX15 DOHC engines. Requires motor oil lubrication.

Precision machined and ground to the highest standards in order to be most accurate for OEM (Original Equipment Specifications).

DD13, DD15, & DD16 Series Injector Sleeve Removal & Installation Tool

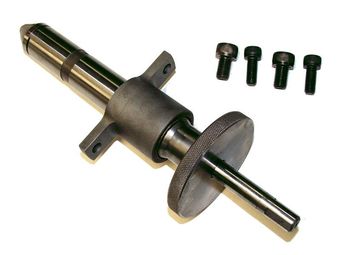

Professional M-11 sleeve nose roll-in tool (416-6152-45) for precise stainless steel injector sleeve installation in Cummins M-11 cylinder heads.

Roll-In Tool for Cummins ISX15/QSX15 DOHC Engines. This specialized tool rolls in the upper end of new stainless steel injector sleeves for precise seating. Made in USA.

Tip Expander Driver for CAT 3114/3116/3126 (2-Valve) Copper Sleeved Engines. Used with a hammer and tip expander to install injector sleeves.

Drill Bushing for Cummins ISX15/QSX15 DOHC Casting Series. Guides the drill for accurate drilling through the replacement plug during injector seat repair.

Precision machined and ground to the highest standards in order to be most accurate for OEM (Original Equipment Specifications).

Roll-in Tool for installing copper injector sleeves in CATERPILLAR 3114, 3116, and 3126 (2-Valve) engines. Expands the sleeve end for a proper fit and seal. Requires light oil lubrication.

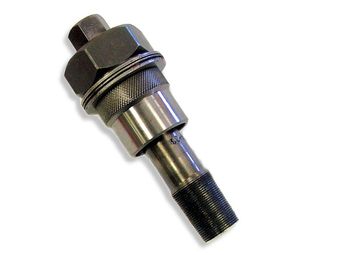

Injector Sleeve Removal Tool for NAVISTAR/INT’L 6.0 engines. Features a threaded puller shaft for extracting worn injector sleeves using a puller bridge and nut.

Gauge Handle used in various Irontite tooling kits for Cummins and GMC diesel engines to hold gauges during injector sleeve seat and tip protrusion cutting procedures.

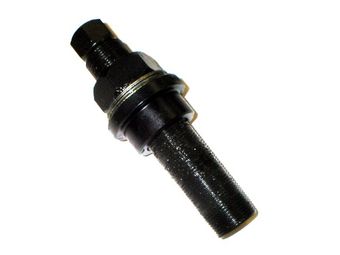

Sleeve Removal Tool for NAVISTAR/INT’L 7.3L Power Stroke, 466E & 530E engines. Used with a tap and puller bridge to mechanically extract worn injector sleeves.

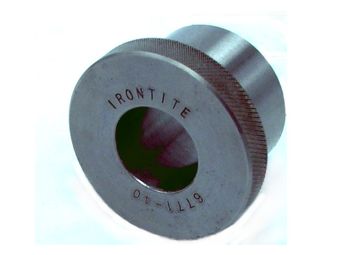

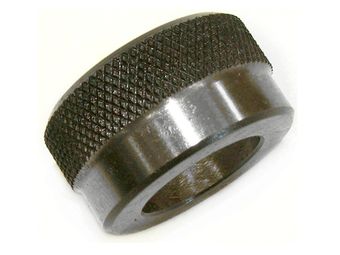

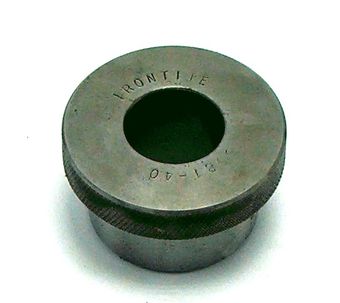

Guide Bushing for Navistar 6.0 Series engines. Ensures precise alignment for tapping injector sleeves and glow plugs during removal, a key part of specialized removal and installation tooling.

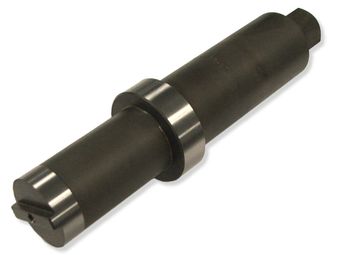

Removal & Installation Tool for Detroit Diesel 60 Series Stainless Steel Injector Sleeves. Simplifies sleeve replacement without machining centers, ensuring OEM specs are maintained.

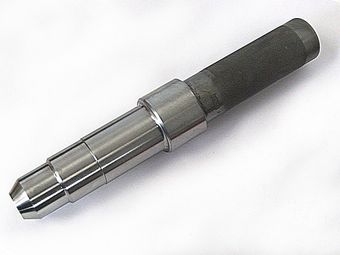

Injector Sleeve Drive-In Tool for Cummins ISX15/QSX15 DOHC Series Engines. Designed for precise installation and proper seating of new injector sleeves. Made in USA.

Injector Sleeve Roll-in Tool for the Cummins ISM, M-11 Stainless Sleeves

Easily remove injector sleeves in CATERPILLAR 3114/3116/3126 engines. Part of the complete puller assembly.

Our exclusive designed carbide Injector Sleeve Seat Cutter. Suitable for both Stainless steel and Copper injector cups.

To keep the sleeve Tap centered in the Injector hole while tapping.

Ensure smooth injector sleeve service for GMC 50/60 engines with the genuine Irontite Guide Bushing Assembly.

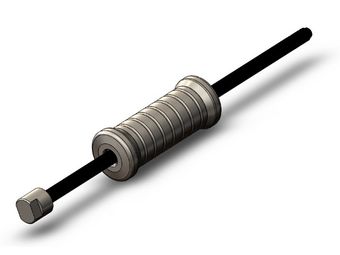

Sleeve Hammer Tool Assembly for Caterpillar 3114/3116/3126 (Copper Sleeves) & 3406E (Stainless Steel Sleeves). Used for injector sleeve installation.

Installation Tool for Navistar 6.0 Engines. Used with a hammer to drive in new injector sleeves or glow plugs.

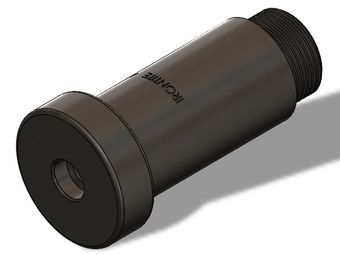

Installation Tool Body for Caterpillar 3406E Engines. Component of the complete sleeve removal and installation tool.

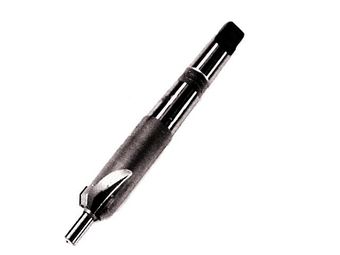

Achieve a perfect, leak-free seal on GM/DD 50/60 copper sleeved injectors with the durable Irontite Carbide Seat Cutter.

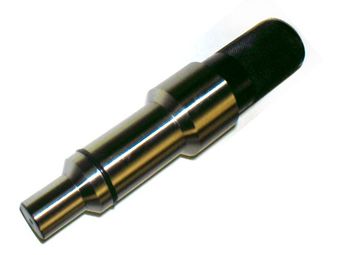

Sleeve Drive In Tool for Navistar 7.3L Power Stroke, 466E & 530E Engines. Used with a hammer to install injector sleeves.

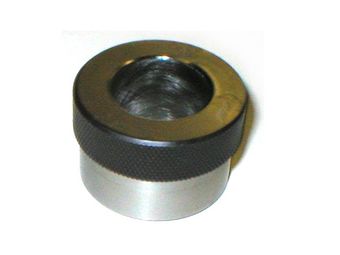

Seat Cutter Guide Bushing for Caterpillar 3114, 3116, 3126 (2-Valve) that use Copper injector Sleeves

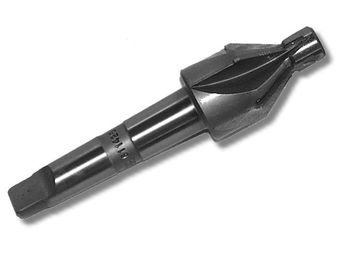

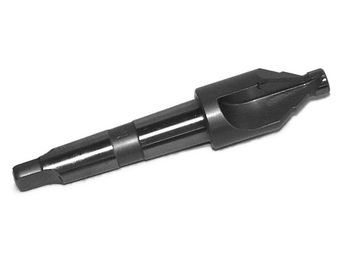

Precision 5-fluted carbide casting seat cutter for Cummins 220, 250, 855, L-10, M-11 & ISM engines. Ensures accurate cleaning and leak prevention.

Injector Sleeve Seat Cutter (Carbide) for Cummins ISX15/QSX15 DOHC engines. Used with a guide bushing and arbor to cut the injector tip protrusion to the correct height.

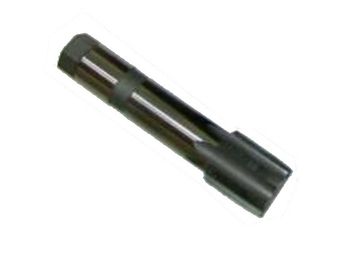

Extended Tap for Cummins ISX15/QSX15 DOHC & SOHC Series. Used to thread worn injector sleeves for removal.

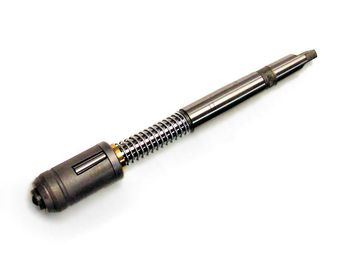

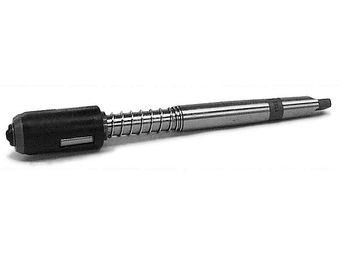

Sleeve Roll-In Tool with Tension Spring for installing copper injector sleeves in Cummins 250, L-10, and M-11 engines. Expands the sleeve end for a proper seal. Use with quality motor oil.

Drive In Tool for CAT 3176 & 3196 Copper Injector Sleeves Ensures proper, damage-free installation of new copper sleeves. This essential tool is available individually, even though its original kit is discontinued.

Injector Sleeve Roll-In Tool for Cummins X-15, ISX-15, and QSX-15 SOHC Cylinder Heads.

Specialized Injector Sleeve Removal Tool for PACCAR MX-13 Series engines. Designed for safe and controlled extraction of old sleeves. Multi-component assembly ensures efficiency. Components Made in USA.

Seat Cutter Bushing for Cummins ISX15/QSX15 and Tap Guide Bushing for Cummins X12

Flaring Stud for installing copper injector sleeves in GM/Detroit Diesel 53, 71, 92, 50 & 60 Series engines. Flares the sleeve end for a secure fit.

Injector Sleeve Seat Cutter for Caterpillar 3114, 3116, and 3126 (2-valve) copper sleeved engines. Essential for ensuring proper injector seating by cleaning or cutting the seat in the sleeve.

Replacement Pilot Tip for the installation tool for GM/DD 53, 71 & 92, 50 & 60 Series Copper Sleeved Engines.

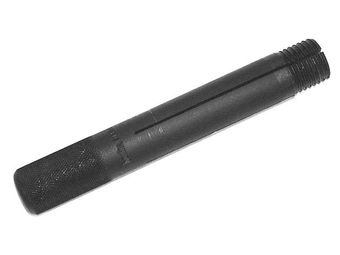

Removal Tool Threaded Body for Cummins Copper Sleeves Essential component for extracting copper injector sleeves from Cummins 250, L-10, and M-11 engines. Requires a hydraulic press for final removal.

Tip Reamer Driver for GM/Detroit Diesel 50 & 60 Series Copper Sleeved Engines. Drives the reamer to clean the bottom of injector sleeves.

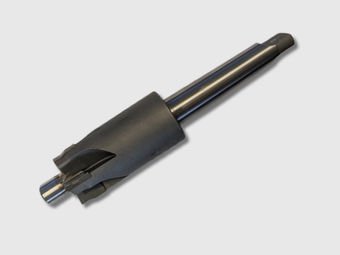

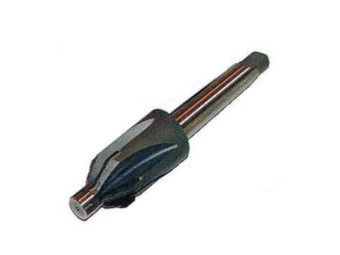

The ISX / QSX Casting Seat Cutter (PN: 414-6157-28) is used for cleaning the seats at the bottom of the injector holes and for cutting a new injector seat in the rebuilt area of the casting. It is a component of the Cummins SOHC Injector Seat Casting Repair Kit.

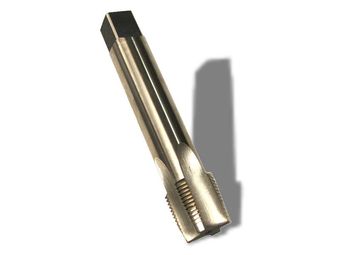

Tap 1-3/16”-12 for Cummins M-11 (Stainless Steel Sleeves) & CAT 3114/3116/3126 (Copper Sleeves). Threads old sleeves for removal. Included in specific tooling kits.

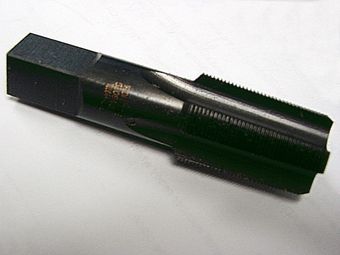

G-Oversize HSS Tapered Tap. High-speed steel tap for installing “GO” series ductile iron plugs in GM/Detroit Diesel 71 & 92 engines and other casting repair applications.

Thrust Bearing for Caterpillar 3176, 3179 Engines

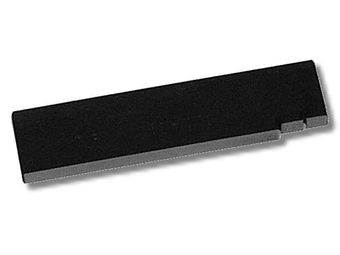

Flat Tip Protrusion Gauge for Cummins 220, 250, 400, 855, and VT1710 engines. Checks injector tip protrusion in the .060” to .070” range, ensuring precise engine rebuilds.

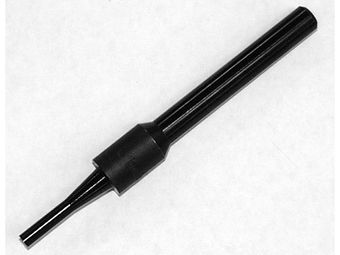

Removal Tool Mandrel for Cummins C&J and Sm/V Copper Injector Sleeves. This is one part of a two-piece tool, designed for precise, damage-free extraction and available as a direct replacement.
