Irontite Diesel Injector Sleeve Tooling for Cummins

The Complete Cummins ISX15 / QSX15 DOHC Injector Sleeve Installation and Removal Kit

Comprehensive tooling kit for removing and installing copper injector sleeves in L-10 and early M-11 engines.

Service Cummins M-11 (Late) stainless steel injectors with the complete, upgradeable Irontite kit, including all necessary tools and a toolbox.

416-6156-43 Nose Roll-In Tool for precise injector sleeve installation in Cummins ISX15/QSX15 DOHC engines. Requires motor oil lubrication.

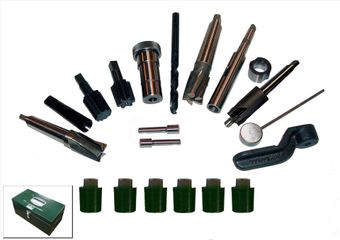

Complete ISX15/QSX15 DOHC Casting Repair Tooling Kit. Includes cutters, taps, reamers, gauges, plugs, and consumables for rebuilding damaged injector seats.

Cummins 250 Series Injector Sleeve Installation Kit with Toolbox. Includes essential tools for installing copper sleeves, such as seat cutter, roll-in tool, drive-in tool, and gauges. Sleeve removal tools sold separately. Made in USA.

Repair cracked injector seat areas in Cummins SOHC cylinder heads with the Irontite “Casting Repair” kit. This kit allows machinists to remove cracked material and replace it with new metal, using a cast ductile iron taper threaded “J” plug.

Professional M-11 sleeve nose roll-in tool (416-6152-45) for precise stainless steel injector sleeve installation in Cummins M-11 cylinder heads.

Roll-In Tool for Cummins ISX15/QSX15 DOHC Engines. This specialized tool rolls in the upper end of new stainless steel injector sleeves for precise seating. Made in USA.

Drill Bushing for Cummins ISX15/QSX15 DOHC Casting Series. Guides the drill for accurate drilling through the replacement plug during injector seat repair.

Gauge Handle used in various Irontite tooling kits for Cummins and GMC diesel engines to hold gauges during injector sleeve seat and tip protrusion cutting procedures.

This kit contains tools such as the sleeve hold down clamp, extended tap, tap guide bushing, and a removal tool to ensure the sleeve is removed safely and efficiently. For installation, the kit includes a carbon steel brush, a sleeve drive-in tool, and a roll-in tool. The kit also provides necessary chemicals such as “EA” Lube and High Heat Sleeve Retainer/Sealant

Stainless Steel Injector Sleeves with O-Ring for Cummins ISX15/QSX15 DOHC Engines. High-quality replacement sleeves.

This comprehensive kit is designed for efficient and precise servicing of ISX15 / QSX15 SOHC engines. It includes specialized tools for removing and installing injector sleeves, ensuring proper fit and function. The kit streamlines the rebuilding process with high-quality, durable tools

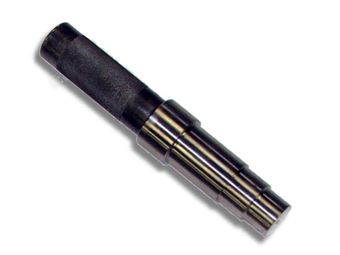

Injector Sleeve Drive-In Tool for Cummins ISX15/QSX15 DOHC Series Engines. Designed for precise installation and proper seating of new injector sleeves. Made in USA.

Injector Sleeve Roll-in Tool for the Cummins ISM, M-11 Stainless Sleeves

Our exclusive designed carbide Injector Sleeve Seat Cutter. Suitable for both Stainless steel and Copper injector cups.

Precision 5-fluted carbide casting seat cutter for Cummins 220, 250, 855, L-10, M-11 & ISM engines. Ensures accurate cleaning and leak prevention.

Injector Sleeve Seat Cutter (Carbide) for Cummins ISX15/QSX15 DOHC engines. Used with a guide bushing and arbor to cut the injector tip protrusion to the correct height.

Extended Tap for Cummins ISX15/QSX15 DOHC & SOHC Series. Used to thread worn injector sleeves for removal.

Sleeve Roll-In Tool with Tension Spring for installing copper injector sleeves in Cummins 250, L-10, and M-11 engines. Expands the sleeve end for a proper seal. Use with quality motor oil.

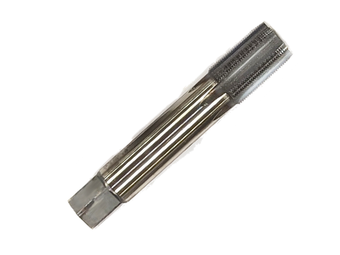

Specialized Tap (1-⅛-18 GH3) for Cummins X12 Series injector sleeve removal. Creates threads on worn sleeves for secure extraction. Requires EA Lube and guide bushing. Made in USA.

Injector Sleeve Roll-In Tool for Cummins X-15, ISX-15, and QSX-15 SOHC Cylinder Heads.

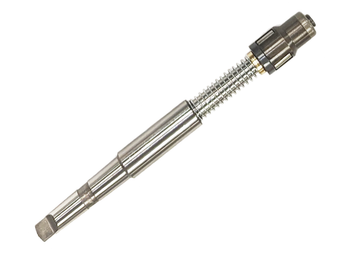

Roll-In Tool specifically designed for installing injector sleeves in Cummins X12 engines. Expands the sleeve end for a proper seal when used in a machining center with quality motor oil.

Seat Cutter Bushing for Cummins ISX15/QSX15 and Tap Guide Bushing for Cummins X12

O-Rings for Cummins 250, L-10 & Small V Series engines. Essential consumable for proper injector sleeve sealing during installation.

O-Ring for the Cummins M-11 SS

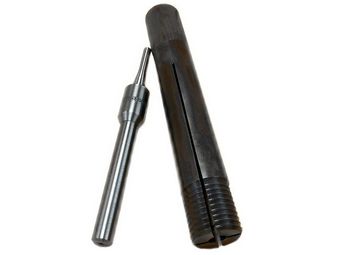

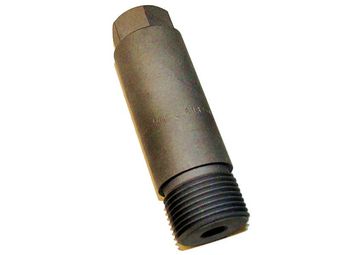

Removal Tool Threaded Body for Cummins Copper Sleeves Essential component for extracting copper injector sleeves from Cummins 250, L-10, and M-11 engines. Requires a hydraulic press for final removal.

Tap 1-3/16”-12 for Cummins M-11 (Stainless Steel Sleeves) & CAT 3114/3116/3126 (Copper Sleeves). Threads old sleeves for removal. Included in specific tooling kits.

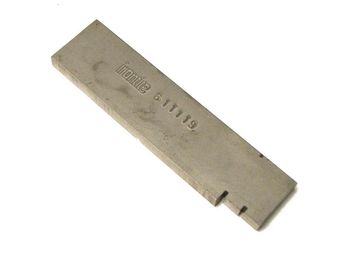

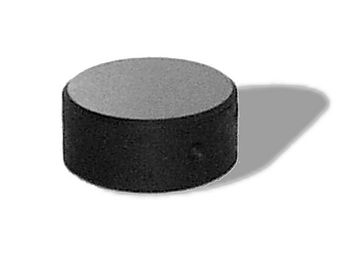

Flat Tip Protrusion Gauge for Cummins 220, 250, 400, 855, and VT1710 engines. Checks injector tip protrusion in the .060” to .070” range, ensuring precise engine rebuilds.

Removal Tool Mandrel for Cummins C&J and Sm/V Copper Injector Sleeves. This is one part of a two-piece tool, designed for precise, damage-free extraction and available as a direct replacement.

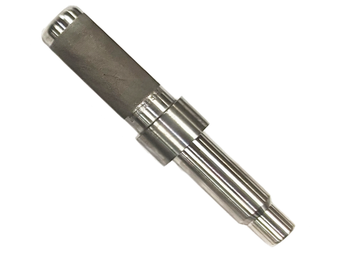

Cummins X12 Injector Sleeve Drive-in Tool

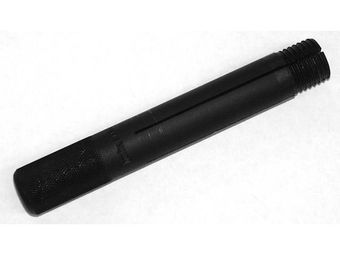

[415-6132-70] Cummins C&J and Sm/V Copper Sleeve Removal Tool Set (Threaded Body & Mandrel). Includes a mandrel and threaded tool body for mechanically extracting copper injector sleeves. A Press recommended.

Stainless Steel Injector Sleeve Assembly with Retainer and O-Ring for Cummins ISX15/QSX15 SOHC, X12, X13, X15 engines. Essential consumable for proper injector sealing. Made in USA.

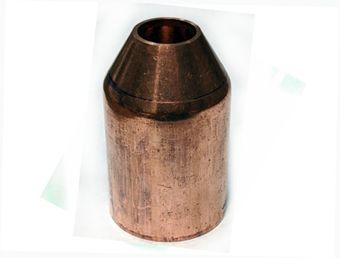

Copper Injector Sleeve for Cummins 250, L-10, and Early M-11 Series engines (5-½” bore). Essential consumable for injector sealing, requiring specific tools, sealants, and lubrication for its comprehensive multi-step installation.

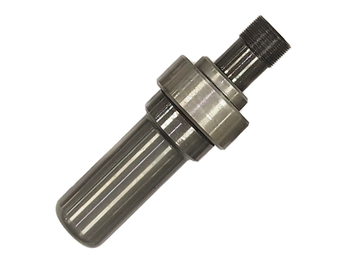

Tool used to remove injector sleeves from the Cummins X12 Engine after tapping threads into the top of an old sleeve.

Removal Tool for Cummins ISX15/QSX15 DOHC & X15 SOHC Engines. Used for extracting old injector sleeves. Included in specific tooling kits.

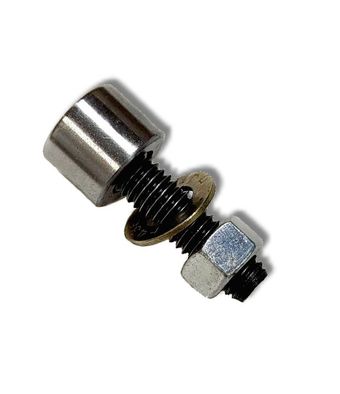

Cummins X12 Sleeve Clamp

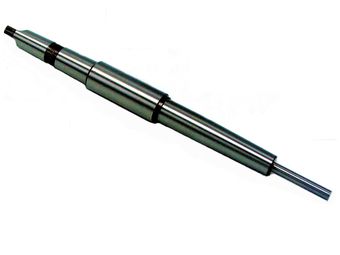

ISX15 / QSX15 SOHC Roll-In Tool Arbor Only

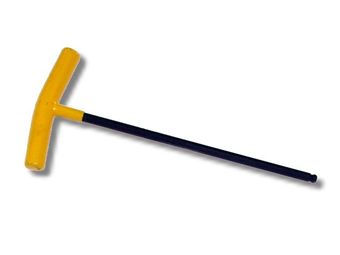

T-Handle Wrench used in Cummins ISX15/QSX15 and X12 Injector Sleeve Removal and Installation Kits.
